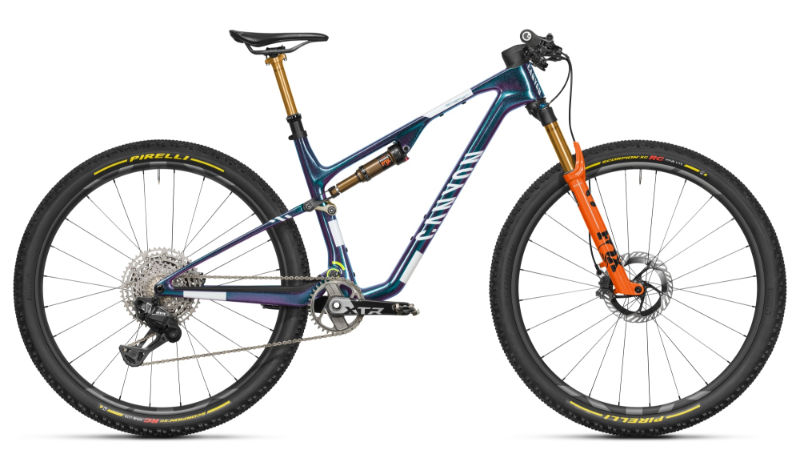

2027 Canyon Lux World Cup CFR geometry
Full frame geometry for the 2027 Canyon Lux World Cup CFR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 595 | 435 | 75.5 | 66 | 93 | 589 | 420 | 807 | 42 | 435 | 1164 | 44 |
| XS | 595 | 415 | 75.5 | 66 | 93 | 569 | 390 | 809 | 42 | 435 | 1144 | 44 |
| M | 597 | 455 | 75.5 | 66 | 95 | 609 | 440 | 808 | 42 | 435 | 1185 | 44 |
| L | 607 | 475 | 75.5 | 66 | 95 | 632 | 470 | 812 | 42 | 440 | 1216 | 44 |
| XL | 620 | 495 | 75.5 | 66 | 120 | 655 | 500 | 817 | 42 | 440 | 1240 | 44 |
All measurements in millimetres unless marked (°) for angles.
