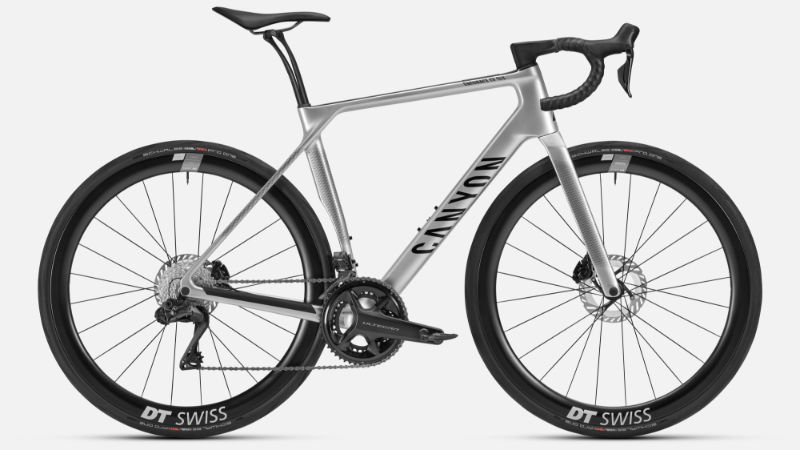

2026 Canyon Endurace CF SLX geometry
Full frame geometry for the 2026 Canyon Endurace CF SLX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3XS | 510 | 350 | 73.5 | 70.3 | 123 | 501 | 402 | 708 | 60 | 405 | 959 |
| 2XS | 529 | 354 | 73.5 | 71.5 | 138 | 511 | 432 | 734 | 60 | 405 | 958 |
| XS | 548 | 370 | 73.5 | 70.8 | 129 | 531 | 462 | 763 | 73 | 415 | 991 |
| S | 568 | 375 | 73.5 | 71.8 | 146 | 543 | 492 | 788 | 73 | 415 | 993 |
| M | 590 | 378 | 73.5 | 72.8 | 165 | 553 | 522 | 815 | 73 | 415 | 993 |
| L | 611 | 387 | 73.5 | 73 | 186 | 568 | 552 | 840 | 73 | 415 | 1006 |
| XL | 637 | 405 | 73.5 | 73.3 | 212 | 594 | 582 | 867 | 73 | 415 | 1029 |
| 2XL | 656 | 415 | 73.5 | 73.3 | 232 | 609 | 612 | 891 | 73 | 415 | 1044 |
All measurements in millimetres unless marked (°) for angles.
