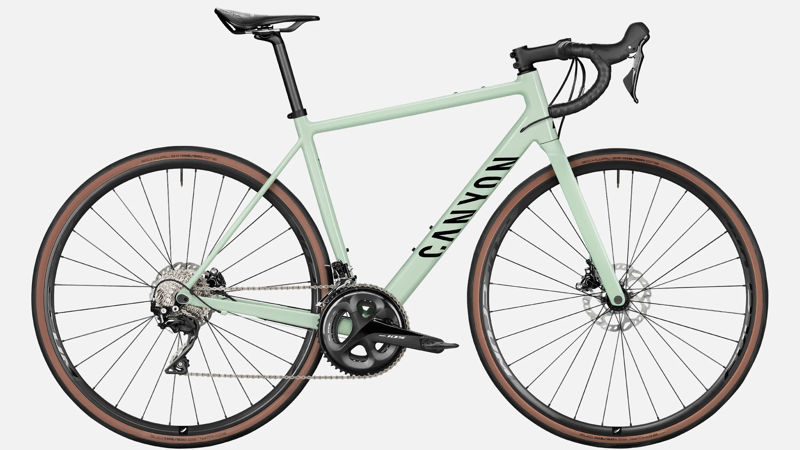

2023 Canyon Endurace AL geometry
Full frame geometry for the 2023 Canyon Endurace AL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3XS | 510 | 350 | 73.5 | 70.5 | 122 | 501 | 402 | 681 | 60 | 405 | 957 |
| 2XS | 529 | 354 | 73.5 | 71.5 | 139 | 511 | 432 | 691 | 60 | 405 | 958 |
| XS | 548 | 370 | 73.5 | 71 | 128 | 532 | 462 | 744 | 73 | 415 | 989 |
| S | 568 | 375 | 73.5 | 72 | 145 | 543 | 492 | 774 | 73 | 415 | 991 |
| M | 590 | 378 | 73.5 | 73 | 164 | 553 | 522 | 800 | 73 | 415 | 990 |
| L | 611 | 387 | 73.5 | 73 | 186 | 568 | 552 | 827 | 73 | 415 | 1006 |
| XL | 637 | 405 | 73.5 | 73.3 | 213 | 594 | 582 | 852 | 73 | 415 | 1029 |
| 2XL | 656 | 414 | 73.5 | 73.3 | 232 | 609 | 612 | 878 | 73 | 415 | 1044 |
All measurements in millimetres unless marked (°) for angles.
