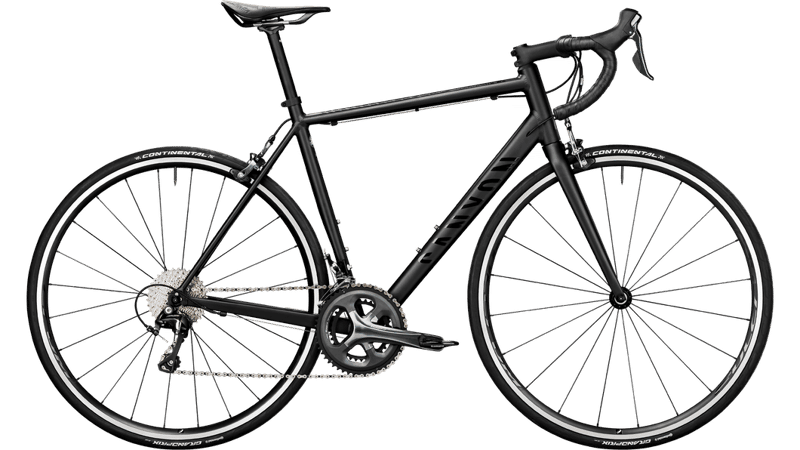

2021 Canyon Endurace AL geometry
Full frame geometry for the 2021 Canyon Endurace AL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 551 | 363 | 73.5 | 70.8 | 150 | 526 | 465 | 741 | 70 | 415 | 984 |
| S | 566 | 369 | 73.5 | 71.5 | 163 | 537 | 505 | 771 | 70 | 415 | 988 |
| M | 581 | 375 | 73.5 | 72.5 | 175 | 547 | 537 | 797 | 70 | 415 | 989 |
| L | 598 | 377 | 73.5 | 73.3 | 190 | 554 | 547 | 817 | 70 | 415 | 998 |
| XL | 619 | 393 | 73.5 | 73.3 | 212 | 576 | 554 | 838 | 70 | 415 | 1011 |
| 2XL | 636 | 399 | 73.5 | 73.3 | 230 | 587 | 576 | 858 | 70 | 415 | 1022 |
All measurements in millimetres unless marked (°) for angles.
