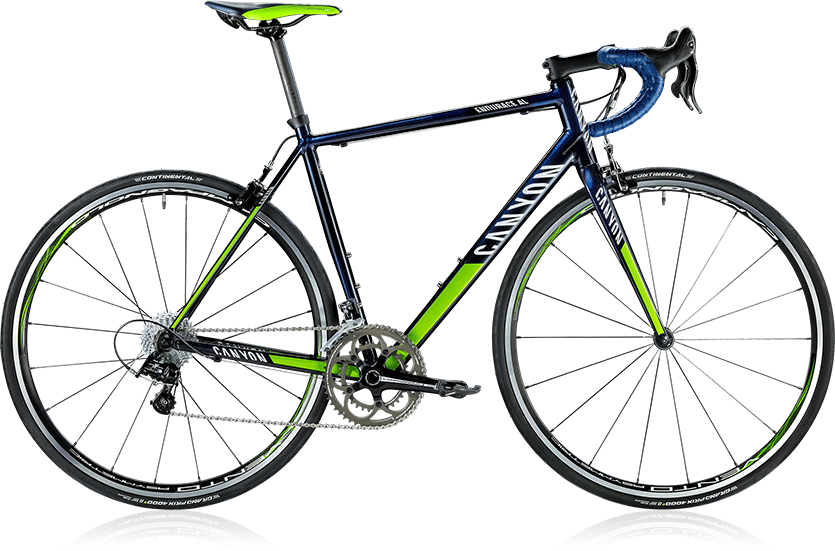

2014 Canyon Endurace AL geometry
Full frame geometry for the 2014 Canyon Endurace AL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS/50 | 551 | 363 | 73.5 | 70.8 | 144 | 526 | 465 | 776 | 70 | 572 | 415 | 979 | 42 | 72 |
| S/53 | 566 | 369 | 73.5 | 71.5 | 160 | 537 | 505 | 805 | 70 | 576 | 415 | 987 | 42 | 68 |
| M/56 | 581 | 375 | 73.5 | 72.5 | 175 | 547 | 537 | 829 | 70 | 578 | 415 | 989 | 42 | 62 |
| L/58 | 598 | 377 | 73.5 | 73.3 | 190 | 554 | 563 | 851 | 70 | 577 | 415 | 989 | 42 | 57 |
| XL/60 | 619 | 393 | 73.5 | 73.3 | 212 | 576 | 585 | 873 | 70 | 600 | 415 | 1010 | 42 | 57 |
| 2XL/62 | 636 | 399 | 73.5 | 73.3 | 230 | 587 | 610 | 894 | 70 | 611 | 415 | 1020 | 42 | 57 |
| 3XL/65 | 654 | 416 | 73.5 | 73.3 | 248 | 610 | 635 | 916 | 70 | 633 | 415 | 1042 | 42 | 57 |
All measurements in millimetres unless marked (°) for angles.
