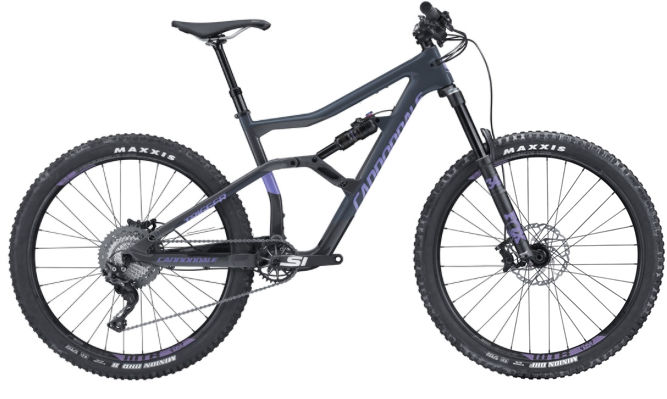

2017 Cannondale Trigger Womens geometry
Full frame geometry for the 2017 Cannondale Trigger Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 576 | 416 | 74.5 | 66 | 97 | 576 | 400 | 750 | 12 | 716 | 420 | 1136 | 44 | 101 |
| M | 588 | 439 | 74.5 | 66 | 110 | 602 | 430 | 760 | 12 | 744 | 420 | 1164 | 44 | 101 |
All measurements in millimetres unless marked (°) for angles.
