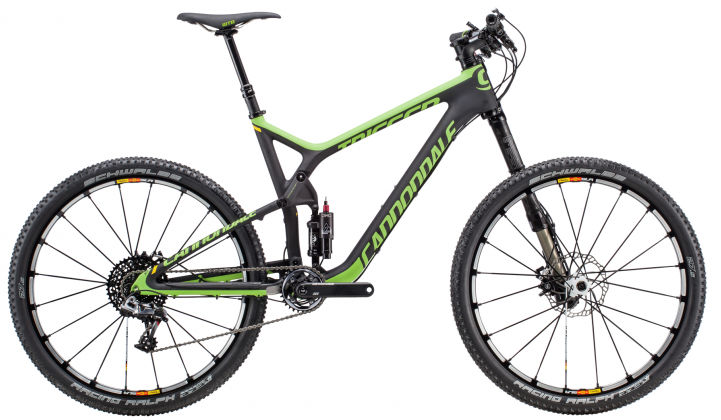

2015 Cannondale Trigger Carbon geometry
Full frame geometry for the 2015 Cannondale Trigger Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 565 | 399 | 73.5 | 68 | 566 | 432 | 731 | 2 | 680 | 438 | 1118 | 50 | 89 |
| M | 576 | 427 | 73.5 | 68 | 598 | 457 | 742 | 2 | 713 | 438 | 1151 | 50 | 89 |
| L | 588 | 450 | 73.5 | 68 | 624 | 483 | 754 | 2 | 741 | 438 | 1179 | 50 | 89 |
| XL | 599 | 474 | 73.5 | 68 | 652 | 508 | 766 | 2 | 770 | 438 | 1208 | 50 | 89 |
All measurements in millimetres unless marked (°) for angles.
