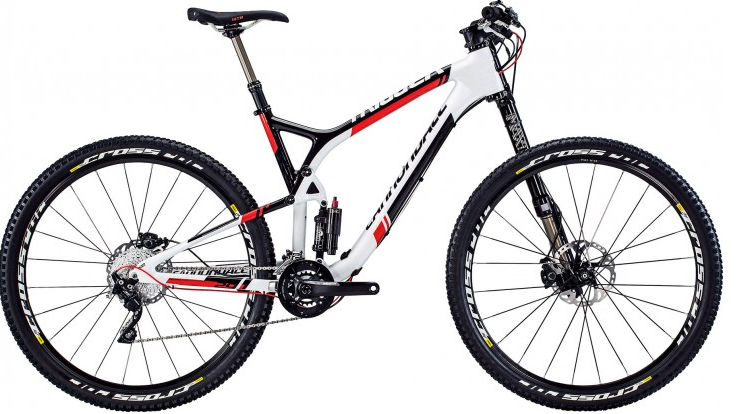

2015 Cannondale Trigger 29 Carbon geometry
Full frame geometry for the 2015 Cannondale Trigger 29 Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 604 | 399 | 73.5 | 69 | 578 | 425 | 745 | 28 | 678 | 448 | 1124 | 50 | 88 |
| M | 616 | 424 | 73.5 | 69 | 606 | 445 | 760 | 28 | 707 | 448 | 1153 | 50 | 88 |
| L | 630 | 447 | 73.5 | 69.5 | 634 | 485 | 775 | 28 | 730 | 448 | 1176 | 50 | 84 |
| XL | 641 | 472 | 73.5 | 69.5 | 662 | 509 | 789 | 28 | 758 | 448 | 1205 | 50 | 84 |
All measurements in millimetres unless marked (°) for angles.
