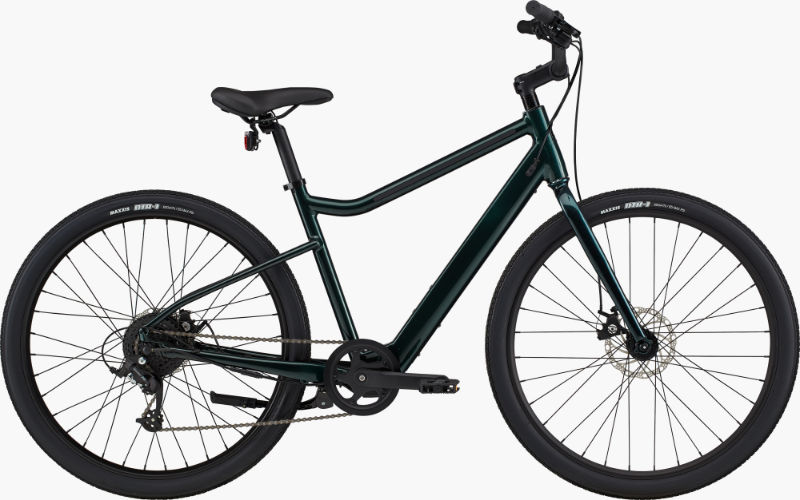

2021 Cannondale Treadwell Neo geometry
Full frame geometry for the 2021 Cannondale Treadwell Neo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 550 | 368 | 71 | 70.5 | 135 | 557 | 387 | 685 | 64 | 604 | 460 | 1054 | 55 | 63 |
| MD | 580 | 379 | 71 | 71 | 165 | 579 | 450 | 709 | 64 | 618 | 460 | 1071 | 55 | 60 |
| LG | 610 | 390 | 71 | 71 | 195 | 600 | 513 | 747 | 64 | 639 | 460 | 1092 | 55 | 60 |
All measurements in millimetres unless marked (°) for angles.
