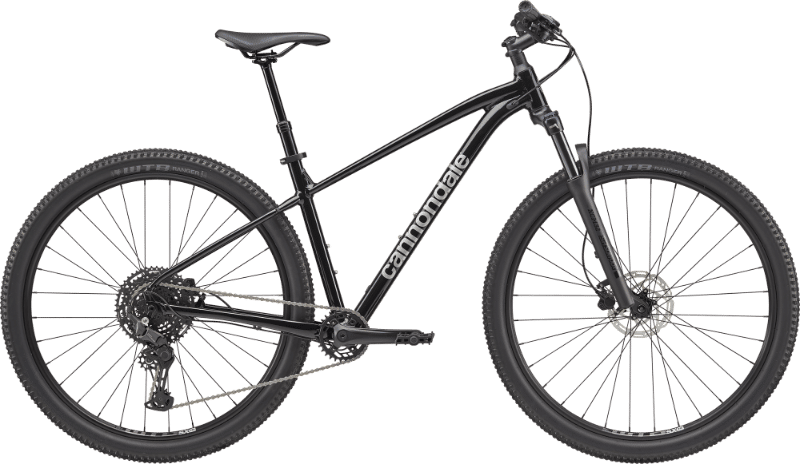

2026 Cannondale Trail geometry
Full frame geometry for the 2026 Cannondale Trail, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 573 | 365 | 73.5 | 68 | 95 | 535 | 330 | 673 | 60 | 621 | 440 | 1054 | 42 | 97 |
| SM | 591 | 402 | 73.5 | 68 | 95 | 577 | 381 | 710 | 60 | 665 | 440 | 1098 | 42 | 97 |
| MD | 623 | 425 | 73.5 | 68 | 105 | 609 | 432 | 768 | 65 | 702 | 445 | 1140 | 46 | 101 |
| LG | 632 | 447 | 73.5 | 68 | 115 | 634 | 470 | 795 | 65 | 728 | 445 | 1166 | 46 | 101 |
| XL | 641 | 469 | 73.5 | 68 | 125 | 659 | 533 | 839 | 65 | 754 | 445 | 1192 | 46 | 101 |
All measurements in millimetres unless marked (°) for angles.
