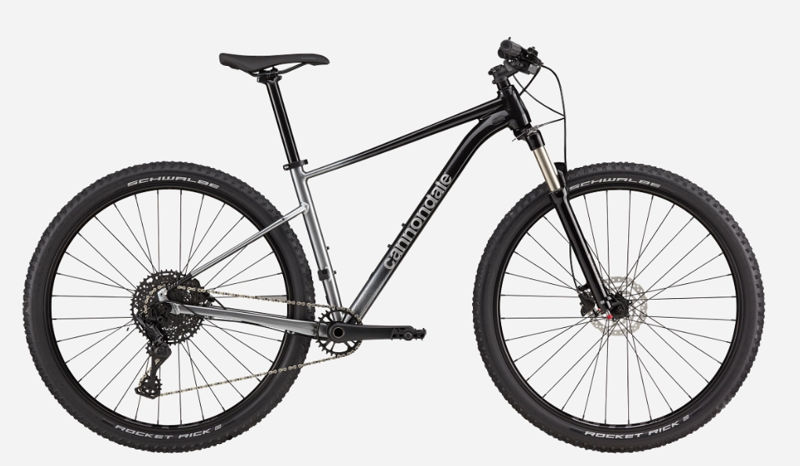

2024 Cannondale Trail SL geometry
Full frame geometry for the 2024 Cannondale Trail SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 584 | 369 | 75 | 68 | 90 | 537 | 360 | 716 | 65 | 637 | 435 | 1064 | 5.1 | 97 |
| SM | 598 | 389 | 75 | 68 | 90 | 561 | 390 | 739 | 65 | 663 | 435 | 1090 | 5.1 | 97 |
| MD | 608 | 419 | 75 | 68 | 100 | 593 | 440 | 774 | 65 | 696 | 435 | 1123 | 5.1 | 97 |
| LG | 617 | 444 | 75 | 68 | 110 | 621 | 470 | 796 | 65 | 725 | 435 | 1152 | 5.1 | 97 |
| XL | 626 | 469 | 75 | 68 | 120 | 648 | 520 | 832 | 65 | 753 | 435 | 1180 | 5.1 | 97 |
All measurements in millimetres unless marked (°) for angles.
