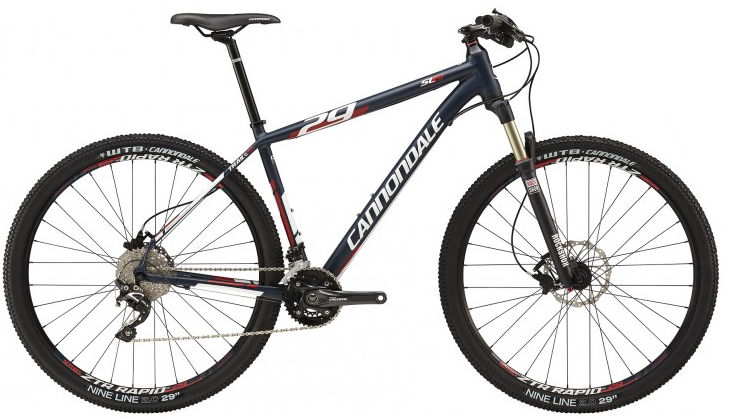

2015 Cannondale Trail SL 29 geometry
Full frame geometry for the 2015 Cannondale Trail SL 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 598 | 373 | 73.5 | 71 | 90 | 550 | 380 | 763 | 65 | 607 | 444 | 1043 | 45 | 80 |
| M | 610 | 413 | 73.5 | 71 | 102 | 594 | 433 | 794 | 65 | 652 | 444 | 1088 | 45 | 80 |
| L | 622 | 433 | 73 | 71 | 114 | 623 | 475 | 819 | 65 | 675 | 444 | 1111 | 45 | 80 |
| XL | 634 | 440 | 72.5 | 71 | 127 | 640 | 525 | 849 | 65 | 687 | 444 | 1123 | 45 | 80 |
| 2XL | 648 | 446 | 72.5 | 71.5 | 140 | 650 | 570 | 878 | 65 | 691 | 444 | 1127 | 45 | 76 |
All measurements in millimetres unless marked (°) for angles.
