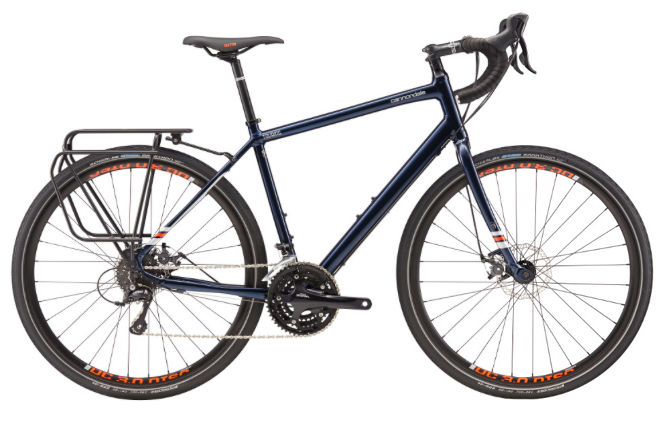

2016 Cannondale Touring geometry
Full frame geometry for the 2016 Cannondale Touring, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 537 | 352 | 74.5 | 71 | 130 | 501 | 430 | 713 | 59 | 573 | 457 | 1023 | 50 | 64 |
| 51 | 556 | 358 | 74 | 71 | 155 | 518 | 460 | 744 | 54 | 586 | 457 | 1038 | 50 | 64 |
| 54 | 590 | 360 | 74 | 71.5 | 155 | 534 | 490 | 780 | 68 | 596 | 457 | 1044 | 50 | 67 |
| 56 | 614 | 373 | 73.5 | 71.5 | 180 | 555 | 510 | 801 | 68 | 613 | 457 | 1061 | 50 | 67 |
| 58 | 639 | 382 | 73 | 72 | 205 | 578 | 530 | 823 | 68 | 624 | 457 | 1072 | 50 | 64 |
| 61 | 663 | 390 | 72.5 | 72 | 230 | 599 | 560 | 850 | 68 | 639 | 457 | 1088 | 50 | 64 |
All measurements in millimetres unless marked (°) for angles.
