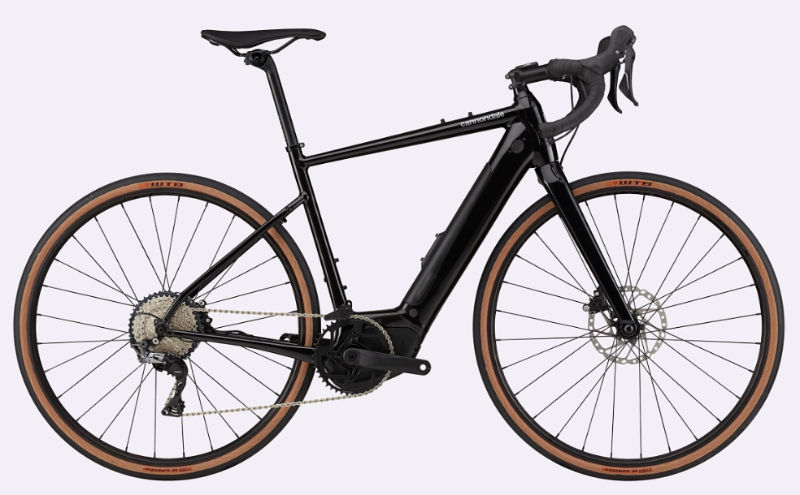

2025 Cannondale Topstone Neo 5 geometry
Full frame geometry for the 2025 Cannondale Topstone Neo 5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 547 | 377 | 74 | 70.5 | 126 | 534 | 445 | 751 | 65 | 610 | 430 | 1031 | 5.5 | 19.6 |
| M | 578 | 387 | 74 | 71 | 157 | 553 | 490 | 790 | 65 | 625 | 430 | 1047 | 5.5 | 18.9 |
| L | 611 | 394 | 74 | 71 | 191 | 569 | 535 | 830 | 65 | 643 | 430 | 1065 | 5.5 | 18.9 |
| XL | 640 | 402 | 74 | 71 | 222 | 586 | 580 | 869 | 65 | 661 | 430 | 1083 | 5.5 | 18.9 |
All measurements in millimetres unless marked (°) for angles.
