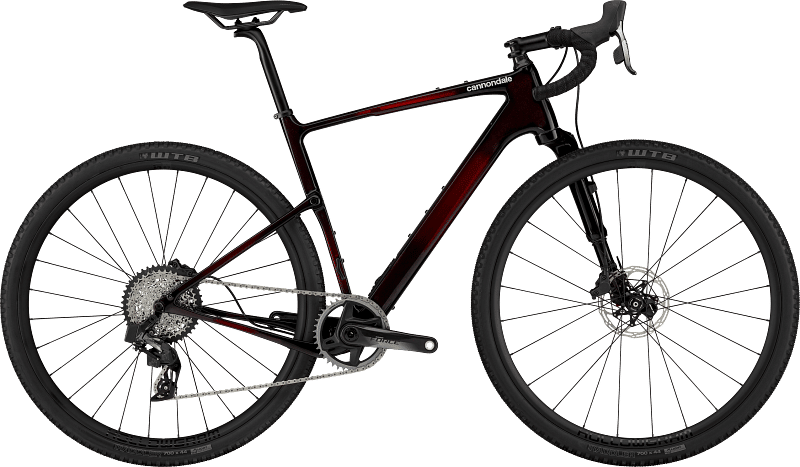

2022 Cannondale Topstone Lefty geometry
Full frame geometry for the 2022 Cannondale Topstone Lefty, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 539 | 361 | 70.7 | 69.3 | 105 | 532 | 410 | 710 | 69 | 601 | 420 | 1012 | 55 | 74 |
| SM | 555 | 367 | 70.9 | 70.3 | 123 | 543 | 458 | 7.1 | 64 | 605 | 420 | 1016 | 55 | 67 |
| MD | 579 | 373 | 71.1 | 70.5 | 150 | 556 | 505 | 791 | 61 | 617 | 420 | 1030 | 55 | 66 |
| LG | 605 | 379 | 71.2 | 70.5 | 177 | 571 | 553 | 829 | 61 | 633 | 420 | 1046 | 55 | 66 |
| XL | 629 | 386 | 71.4 | 70.5 | 205 | 586 | 590 | 864 | 59 | 649 | 420 | 1062 | 55 | 66 |
All measurements in millimetres unless marked (°) for angles.
