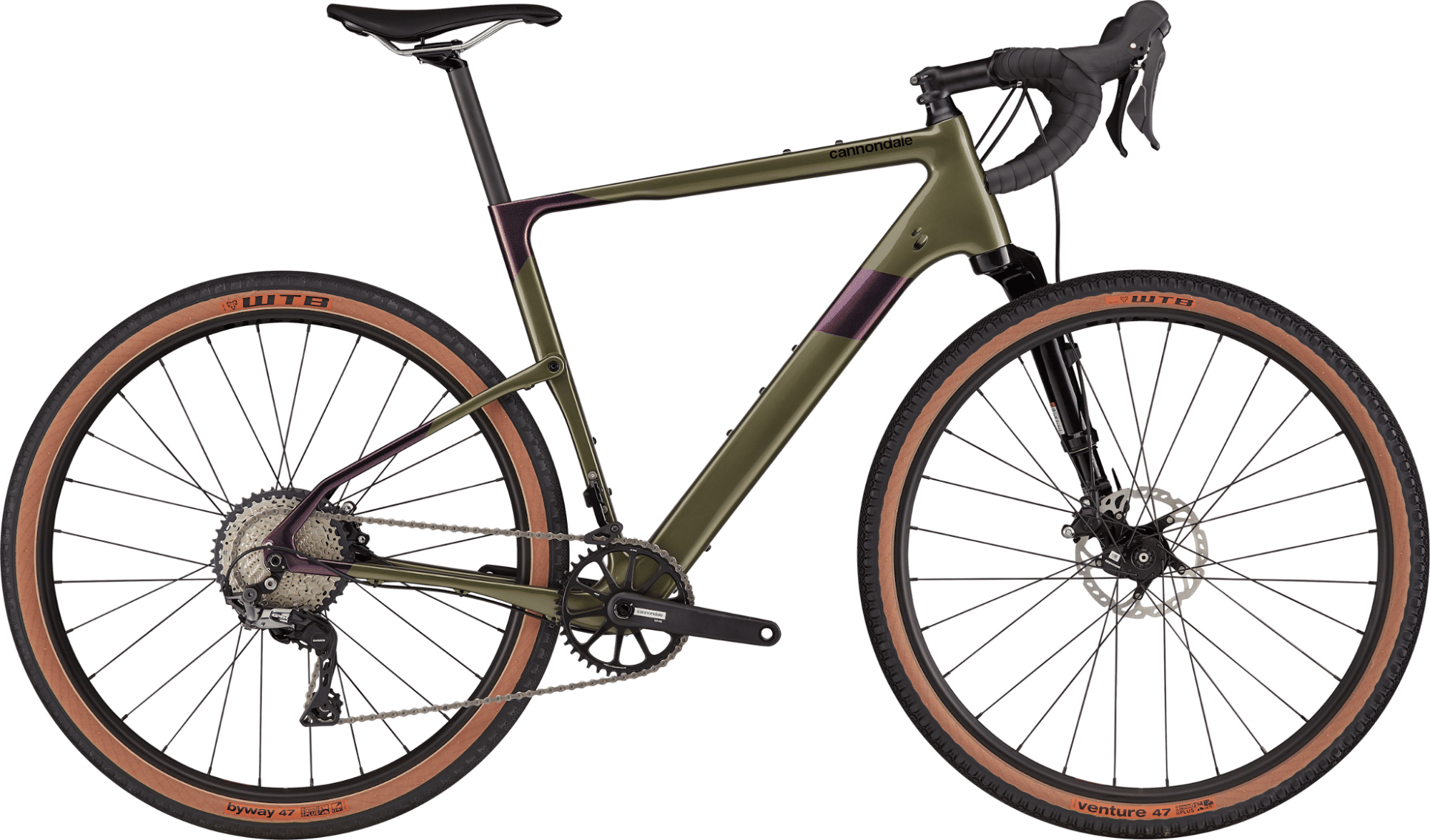

2020 Cannondale Topstone Carbon Lefty geometry
Full frame geometry for the 2020 Cannondale Topstone Carbon Lefty, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 518 | 368 | 73.1 | 70 | 97 | 525 | 410 | 710 | 69 | 594 | 415 | 999 | 55 | 64 |
| S | 550 | 377 | 73.1 | 71.2 | 131 | 544 | 458 | 756 | 64 | 604 | 415 | 1010 | 55 | 57 |
| M | 579 | 385 | 73.1 | 71.2 | 165 | 561 | 505 | 798 | 61 | 623 | 415 | 1030 | 55 | 57 |
| L | 610 | 394 | 73.1 | 71.2 | 198 | 579 | 553 | 838 | 61 | 642 | 415 | 1049 | 55 | 57 |
| XL | 641 | 401 | 73.1 | 71.2 | 232 | 596 | 600 | 880 | 59 | 660 | 415 | 1068 | 55 | 57 |
All measurements in millimetres unless marked (°) for angles.
