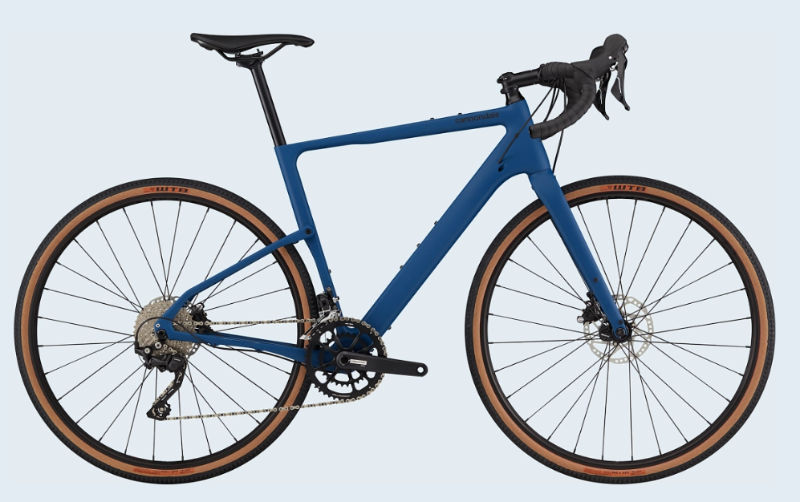

2024 Cannondale Topstone Carbon 6 geometry
Full frame geometry for the 2024 Cannondale Topstone Carbon 6, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 518 | 368 | 73.1 | 70 | 97 | 525 | 410 | 715 | 69 | 594 | 415 | 999 | 5.5 | 66 |
| SM | 549 | 377 | 73.1 | 71.2 | 131 | 544 | 458 | 761 | 64 | 604 | 415 | 1010 | 5.5 | 58 |
| MD | 579 | 385 | 73.1 | 71.2 | 165 | 561 | 505 | 803 | 61 | 623 | 415 | 1030 | 5.5 | 58 |
| LG | 610 | 394 | 73.1 | 71.2 | 198 | 579 | 553 | 843 | 61 | 642 | 415 | 1040 | 5.5 | 58 |
| XL | 640 | 402 | 73.1 | 71.2 | 232 | 96 | 600 | 885 | 59 | 660 | 415 | 1060 | 5.5 | 58 |
All measurements in millimetres unless marked (°) for angles.
