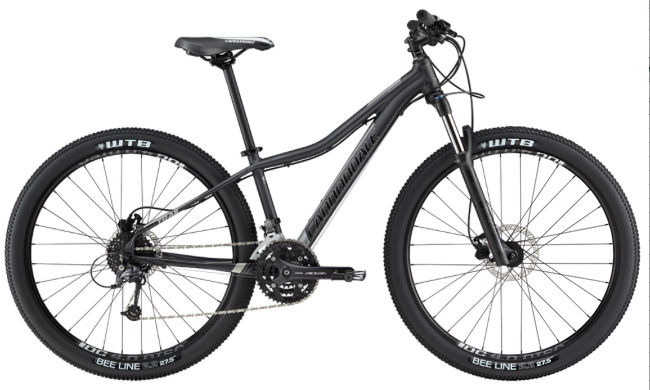

2017 Cannondale Tango geometry
Full frame geometry for the 2017 Cannondale Tango, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 576 | 374 | 73.5 | 70 | 90 | 545 | 350 | 352 | 43 | 618 | 435 | 1049 | 45 | 82 |
| M | 589 | 396 | 73.5 | 70 | 103 | 570 | 400 | 388 | 43 | 644 | 435 | 1075 | 45 | 82 |
| TL | 600 | 417 | 73.5 | 70 | 115 | 595 | 450 | 411 | 43 | 669 | 435 | 1101 | 45 | 82 |
All measurements in millimetres unless marked (°) for angles.
