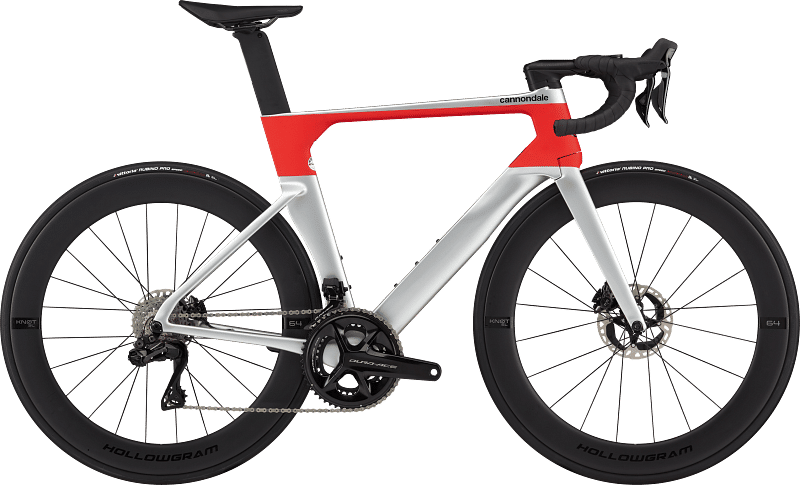

2022 Cannondale SystemSix Hi-Mod geometry
Full frame geometry for the 2022 Cannondale SystemSix Hi-Mod, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 500 | 375 | 74.5 | 71.2 | 88 | 514 | 385 | 680 | 79 | 582 | 974 | 55 | 58 |
| 51 | 520 | 381 | 74.1 | 71.2 | 114 | 529 | 433 | 723 | 74 | 595 | 989 | 55 | 58 |
| 54 | 540 | 386 | 73.7 | 73 | 128 | 544 | 482 | 762 | 72 | 581 | 975 | 45 | 57 |
| 56 | 560 | 392 | 73.3 | 73 | 149 | 56 | 530 | 798 | 72 | 593 | 987 | 45 | 57 |
| 58 | 580 | 398 | 72.9 | 73 | 172 | 576 | 553 | 821 | 69 | 605 | 1000 | 45 | 57 |
| 60 | 600 | 403 | 72.5 | 72.9 | 193 | 592 | 577 | 843 | 69 | 617 | 1012 | 45 | 58 |
| 62 | 620 | 409 | 72.1 | 72.9 | 214 | 609 | 600 | 863 | 69 | 629 | 1024 | 45 | 58 |
All measurements in millimetres unless marked (°) for angles.
