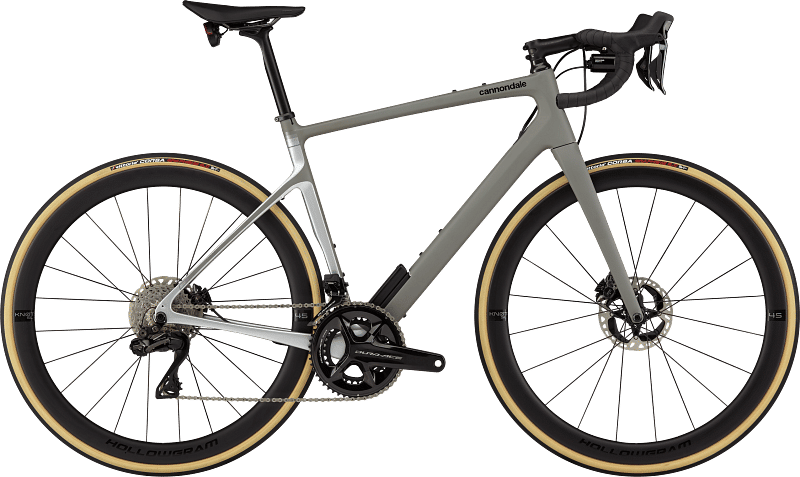

2022 Cannondale Synapse geometry
Full frame geometry for the 2022 Cannondale Synapse, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48.0 | 530 | 371 | 73 | 71.3 | 109 | 533 | 487 | 712 | 75 | 588 | 991 | 5.5 | 59 |
| 51.0 | 550 | 376 | 73 | 71.4 | 130 | 544 | 443 | 742 | 75 | 598 | 1002 | 5.5 | 58 |
| 54.0 | 570 | 381 | 73 | 73.1 | 143 | 555 | 480 | 773 | 73 | 583 | 987 | 4.5 | 58 |
| 56.0 | 590 | 387 | 73 | 73.2 | 164 | 567 | 520 | 787 | 73 | 594 | 998 | 4.5 | 57 |
| 58.0 | 610 | 393 | 73 | 73.3 | 187 | 579 | 550 | 833 | 70 | 606 | 1011 | 4.5 | 56 |
| 61.8 | 640 | 402 | 73 | 73.4 | 218 | 598 | 590 | 868 | 70 | 623 | 1028 | 4.5 | 56 |
All measurements in millimetres unless marked (°) for angles.
