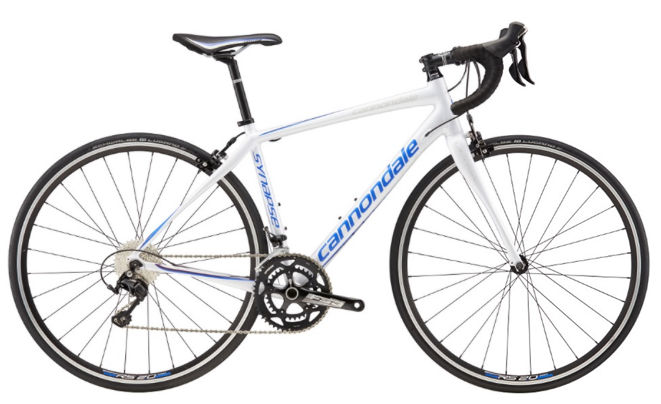

2017 Cannondale Synapse Womens geometry
Full frame geometry for the 2017 Cannondale Synapse Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 527 | 353 | 75.3 | 69.7 | 491 | 380 | 683 | 75 | 578 | 410 | 977 | 50 | 72 |
| 48 | 543 | 359 | 74.9 | 70.6 | 506 | 405 | 706 | 75 | 582 | 410 | 980 | 50 | 67 |
| 51 | 560 | 365 | 74.5 | 71.3 | 521 | 430 | 713 | 75 | 587 | 410 | 985 | 50 | 62 |
| 54 | 575 | 372 | 74.1 | 72 | 536 | 460 | 720 | 73 | 592 | 410 | 991 | 50 | 58 |
| 56 | 592 | 378 | 73.7 | 72.7 | 551 | 490 | 727 | 73 | 596 | 410 | 995 | 50 | 54 |
All measurements in millimetres unless marked (°) for angles.
