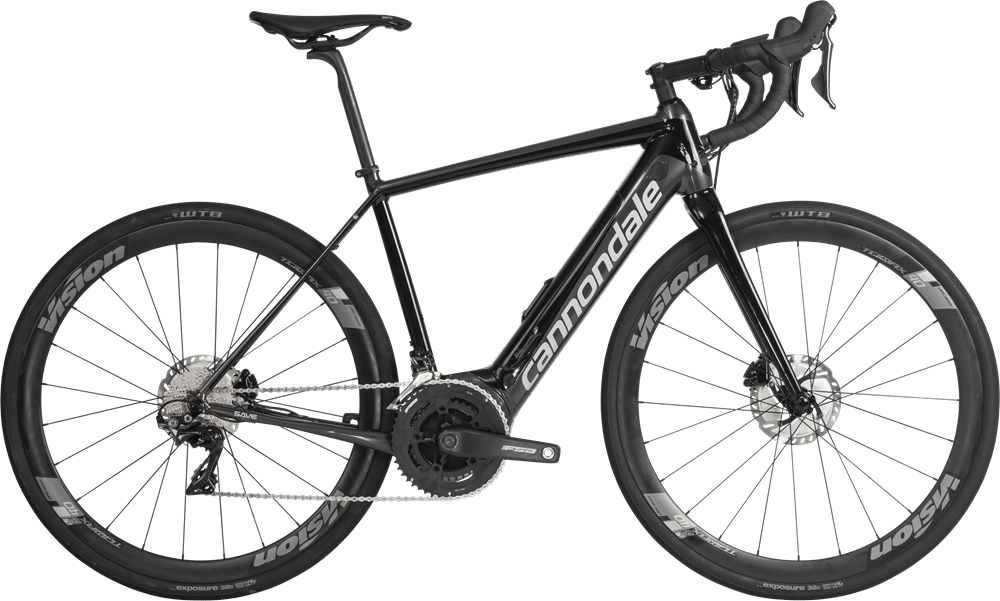

2019 Cannondale Synapse NEO geometry
Full frame geometry for the 2019 Cannondale Synapse NEO, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 547 | 378 | 74 | 71 | 126 | 535 | 445 | 730 | 67 | 605 | 438 | 1034 | 55 | 62 |
| M | 577 | 387 | 74 | 71 | 157 | 552 | 490 | 770 | 67 | 624 | 438 | 1053 | 55 | 62 |
| L | 609 | 396 | 73.5 | 71 | 191 | 576 | 535 | 810 | 67 | 644 | 438 | 1073 | 55 | 62 |
| XL | 638 | 408 | 73 | 71 | 222 | 597 | 580 | 850 | 67 | 666 | 438 | 1034 | 55 | 62 |
All measurements in millimetres unless marked (°) for angles.
