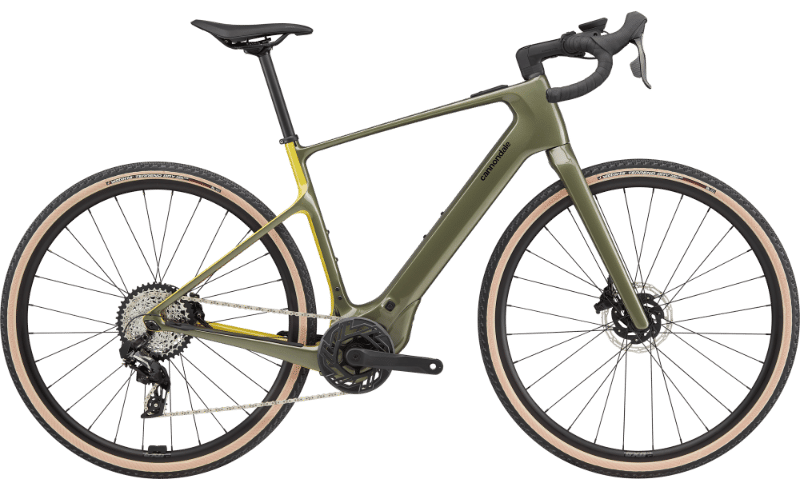

2026 Cannondale Synapse Neo Allroad geometry
Full frame geometry for the 2026 Cannondale Synapse Neo Allroad, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 560 | 378 | 73 | 70.2 | 113 | 549 | 407 | 715 | 75 | 610 | 450 | 1049 | 50 | 74 |
| SM | 578 | 386 | 73 | 71.1 | 129 | 563 | 453 | 751 | 75 | 616 | 450 | 1055 | 50 | 68 |
| MD | 605 | 394 | 73 | 72 | 159 | 579 | 499 | 795 | 70 | 624 | 450 | 1065 | 50 | 62 |
| LG | 633 | 401 | 73 | 72 | 193 | 595 | 544 | 838 | 65 | 641 | 450 | 1083 | 50 | 62 |
| XL | 660 | 409 | 73 | 72 | 222 | 611 | 590 | 876 | 65 | 658 | 450 | 1100 | 50 | 62 |
All measurements in millimetres unless marked (°) for angles.
