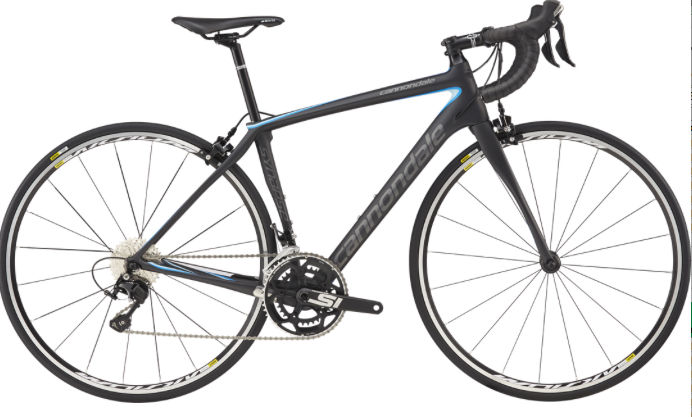

2017 Cannondale Synapse Carbon Womens geometry
Full frame geometry for the 2017 Cannondale Synapse Carbon Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 516 | 356 | 75.3 | 69.7 | 491 | 380 | 645 | 75 | 583 | 410 | 981 | 55 | 67 |
| 48 | 533 | 362 | 74.9 | 70.6 | 506 | 405 | 670 | 75 | 586 | 410 | 985 | 55 | 61 |
| 51 | 550 | 368 | 74.5 | 71.3 | 521 | 430 | 695 | 75 | 592 | 410 | 990 | 55 | 57 |
| 54 | 567 | 374 | 74.1 | 72 | 536 | 460 | 728 | 73 | 592 | 410 | 991 | 50 | 58 |
| 56 | 584 | 380 | 73.7 | 72.7 | 551 | 490 | 758 | 73 | 596 | 410 | 995 | 50 | 54 |
All measurements in millimetres unless marked (°) for angles.
