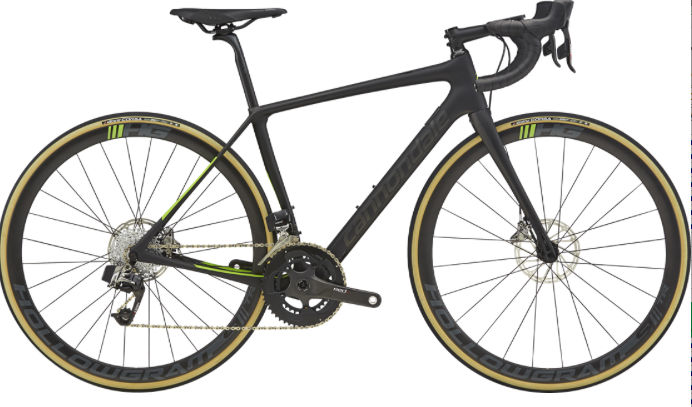

2017 Cannondale Synapse Carbon Disc Womens MKII geometry
Full frame geometry for the 2017 Cannondale Synapse Carbon Disc Womens MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 510 | 365 | 74.7 | 70.2 | 103 | 505 | 370 | 680 | 75 | 591 | 410 | 989 | 60 | 60 |
| 48 | 530 | 371 | 74.6 | 70.8 | 122 | 517 | 407 | 712 | 75 | 598 | 410 | 996 | 60 | 56 |
| 51 | 550 | 377 | 74.3 | 71.7 | 137 | 531 | 443 | 742 | 75 | 596 | 410 | 994 | 55 | 56 |
| 54 | 570 | 382 | 73.9 | 71.7 | 161 | 547 | 480 | 773 | 73 | 609 | 410 | 1008 | 55 | 56 |
| 56 | 590 | 386 | 73.5 | 73 | 173 | 561 | 520 | 804 | 73 | 596 | 410 | 995 | 45 | 58 |
| 58 | 610 | 393 | 73 | 73 | 197 | 579 | 550 | 833 | 70 | 609 | 410 | 1009 | 45 | 58 |
| 61 | 640 | 402 | 72.5 | 73 | 229 | 604 | 590 | 868 | 70 | 627 | 410 | 1028 | 45 | 58 |
All measurements in millimetres unless marked (°) for angles.
