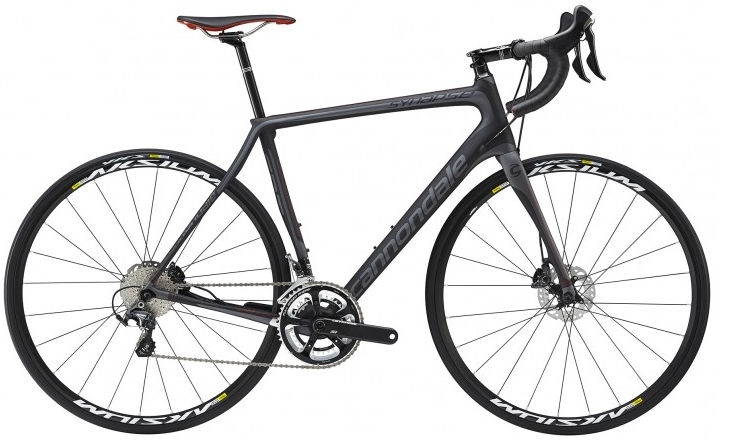

2014 Cannondale Synapse Carbon Disc MKI geometry
Full frame geometry for the 2014 Cannondale Synapse Carbon Disc MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 528 | 362 | 74.6 | 70.8 | 127 | 508 | 695 | 75 | 578 | 410 | 976 | 50 | 65 |
| 51 | 549 | 370 | 74.3 | 71.3 | 146 | 524 | 725 | 75 | 588 | 410 | 986 | 50 | 62 |
| 54 | 570 | 378 | 73.9 | 72 | 166 | 542 | 758 | 73 | 591 | 410 | 990 | 50 | 63 |
| 56 | 590 | 386 | 73.5 | 72.5 | 186 | 561 | 778 | 73 | 601 | 410 | 1000 | 50 | 60 |
| 58 | 611 | 394 | 73 | 73 | 208 | 581 | 810 | 70 | 610 | 413 | 1013 | 50 | 57 |
| 61 | 631 | 402 | 72.5 | 73 | 229 | 601 | 845 | 70 | 625 | 413 | 1028 | 50 | 57 |
All measurements in millimetres unless marked (°) for angles.
