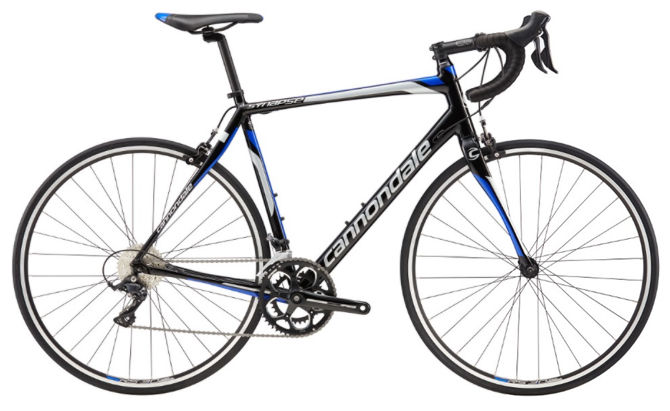

2017 Cannondale Synapse Alloy MKIII geometry
Full frame geometry for the 2017 Cannondale Synapse Alloy MKIII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 527 | 353 | 75.3 | 69.7 | 120 | 491 | 380 | 683 | 75 | 578 | 410 | 977 | 50 | 72 |
| 48 | 537 | 360 | 74.6 | 70.8 | 127 | 508 | 430 | 718 | 75 | 578 | 410 | 977 | 50 | 65 |
| 51 | 557 | 368 | 74.3 | 71.3 | 146 | 524 | 460 | 745 | 75 | 588 | 410 | 987 | 50 | 62 |
| 54 | 576 | 376 | 73.9 | 72 | 166 | 542 | 490 | 774 | 73 | 597 | 410 | 996 | 50 | 58 |
| 56 | 597 | 384 | 73.5 | 72.5 | 186 | 561 | 520 | 805 | 73 | 606 | 410 | 1005 | 50 | 55 |
| 58 | 618 | 392 | 73 | 73 | 208 | 581 | 545 | 827 | 70 | 615 | 410 | 1015 | 50 | 52 |
| 61 | 639 | 400 | 72.5 | 73 | 230 | 601 | 575 | 857 | 70 | 630 | 410 | 1030 | 50 | 52 |
All measurements in millimetres unless marked (°) for angles.
