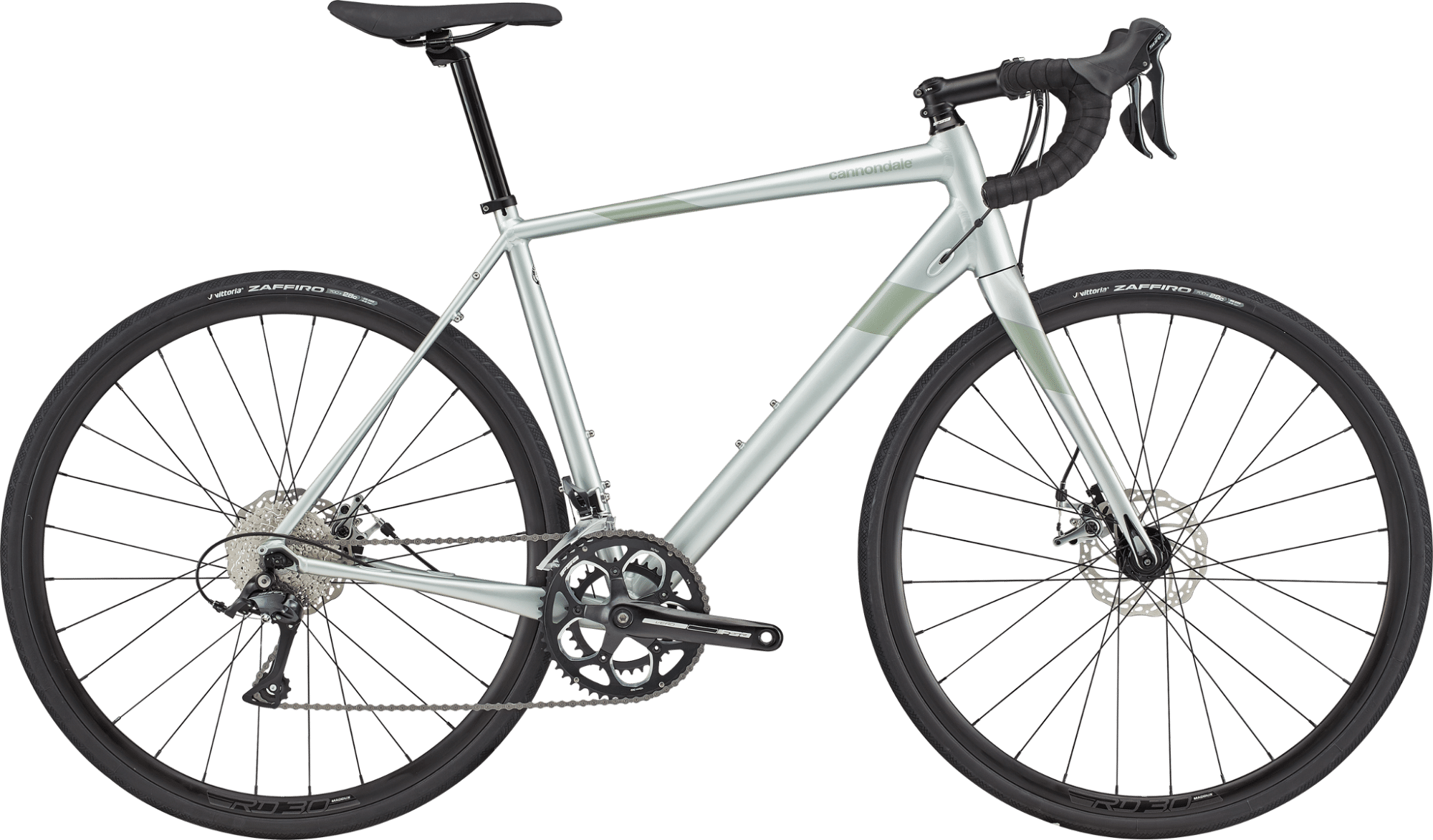

2019 Cannondale Synapse Alloy Disc MKIII geometry
Full frame geometry for the 2019 Cannondale Synapse Alloy Disc MKIII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 510 | 365 | 74.7 | 70.2 | 104 | 505 | 400 | 680 | 75 | 591 | 430 | 992 | 60 | 60 |
| 48 | 530 | 371 | 74.6 | 70.8 | 123 | 517 | 422 | 701 | 75 | 598 | 430 | 999 | 60 | 57 |
| 51 | 550 | 376 | 74.3 | 71 | 143 | 531 | 443 | 722 | 75 | 608 | 430 | 1010 | 60 | 55 |
| 54 | 570 | 383 | 73.9 | 71.9 | 159 | 547 | 480 | 755 | 73 | 602 | 430 | 1004 | 50 | 60 |
| 56 | 589 | 389 | 73.5 | 72.1 | 178 | 563 | 520 | 787 | 73 | 612 | 430 | 1014 | 50 | 59 |
| 58 | 609 | 394 | 73 | 72.3 | 202 | 580 | 550 | 816 | 70 | 622 | 430 | 1025 | 50 | 58 |
| 61 | 639 | 403 | 72.5 | 72.5 | 232 | 604 | 590 | 851 | 70 | 638 | 430 | 1041 | 50 | 56 |
All measurements in millimetres unless marked (°) for angles.
