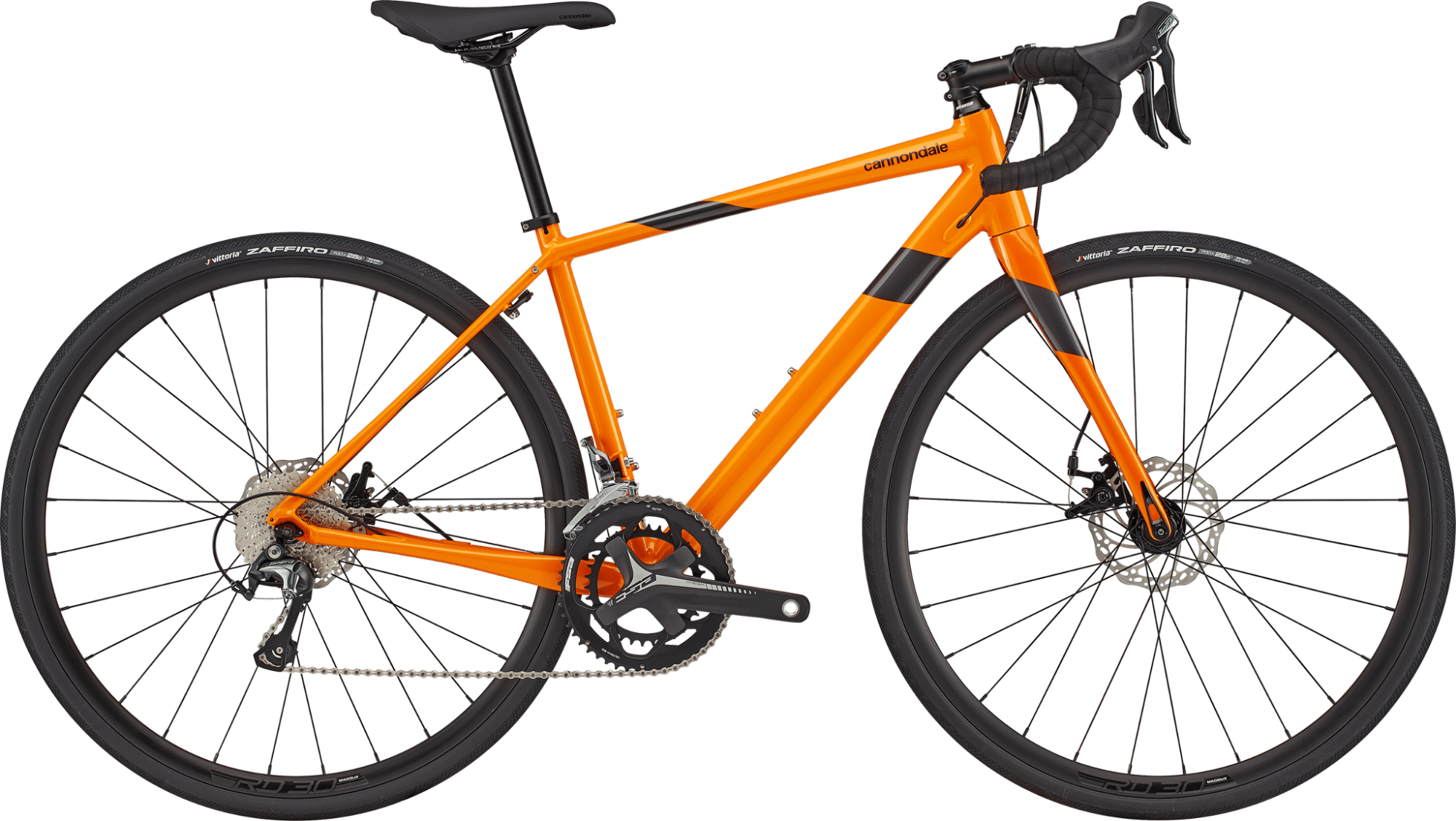

2019 Cannondale Synapse Alloy Disc MKIII Womens geometry
Full frame geometry for the 2019 Cannondale Synapse Alloy Disc MKIII Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 510 | 365 | 74.7 | 70.2 | 104 | 505 | 400 | 680 | 75 | 591 | 430 | 992 | 60 | 60 |
| 48 | 530 | 371 | 74.6 | 70.8 | 123 | 517 | 422 | 701 | 75 | 598 | 430 | 999 | 60 | 57 |
| 51 | 550 | 376 | 74.3 | 71 | 143 | 531 | 443 | 722 | 75 | 608 | 430 | 1010 | 60 | 55 |
| 54 | 570 | 383 | 73.9 | 71.9 | 159 | 547 | 480 | 755 | 73 | 602 | 430 | 1004 | 50 | 60 |
All measurements in millimetres unless marked (°) for angles.
