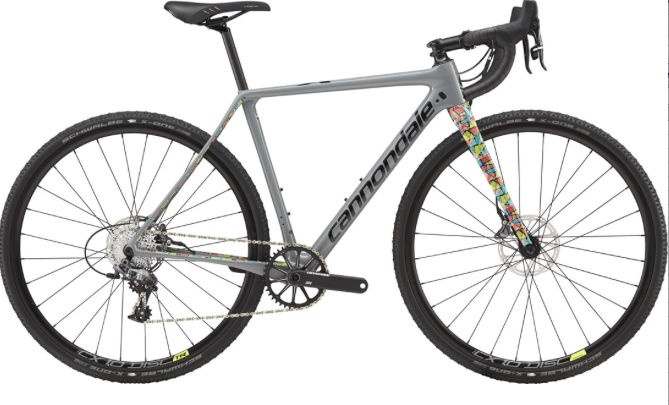

2017 Cannondale SUPERX Womens geometry
Full frame geometry for the 2017 Cannondale SUPERX Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 515 | 365 | 74.6 | 70 | 93 | 507 | 449 | 743 | 70 | 590 | 422 | 1002 | 55 | 69 |
| 51 | 535 | 371 | 74 | 71 | 110 | 524 | 488 | 773 | 70 | 593 | 422 | 1005 | 55 | 62 |
| 54 | 555 | 378 | 74 | 71 | 132 | 537 | 524 | 802 | 69 | 607 | 422 | 1020 | 55 | 62 |
| 56 | 575 | 385 | 73.5 | 71 | 153 | 555 | 546 | 822 | 69 | 621 | 422 | 1034 | 55 | 62 |
| 58 | 595 | 392 | 73.5 | 71 | 175 | 568 | 566 | 843 | 68 | 635 | 422 | 1048 | 55 | 62 |
| 61 | 615 | 398 | 73 | 71 | 196 | 586 | 589 | 863 | 68 | 648 | 422 | 1061 | 55 | 62 |
All measurements in millimetres unless marked (°) for angles.
