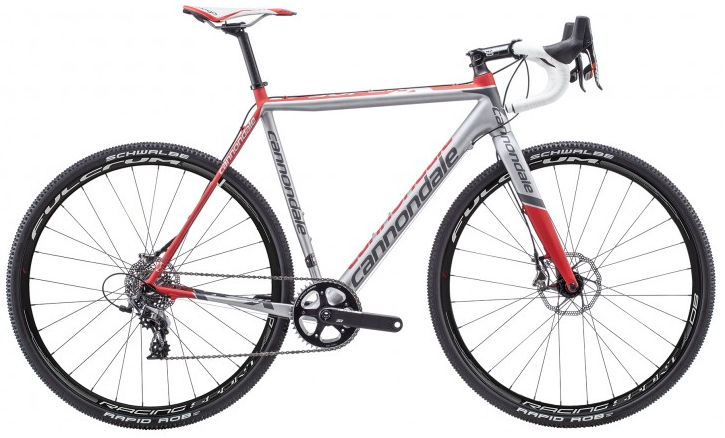

2014 Cannondale SuperX Disc geometry
Full frame geometry for the 2014 Cannondale SuperX Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 518 | 371 | 75 | 69 | 100 | 510 | 749 | 67 | 596 | 430 | 1017 | 45 | 85 |
| 48 | 529 | 368 | 74 | 69.5 | 110 | 520 | 770 | 67 | 593 | 430 | 1014 | 45 | 84 |
| 52 | 560 | 374 | 73.5 | 71.5 | 135 | 540 | 804 | 67 | 590 | 430 | 1011 | 45 | 40 |
| 54 | 576 | 379 | 73.5 | 72 | 150 | 550 | 822 | 67 | 596 | 430 | 1017 | 45 | 67 |
| 56 | 588 | 390 | 73 | 72.5 | 160 | 570 | 836 | 67 | 605 | 430 | 1026 | 45 | 64 |
| 58 | 607 | 405 | 73 | 72.5 | 180 | 590 | 855 | 67 | 526 | 430 | 1047 | 45 | 64 |
All measurements in millimetres unless marked (°) for angles.
