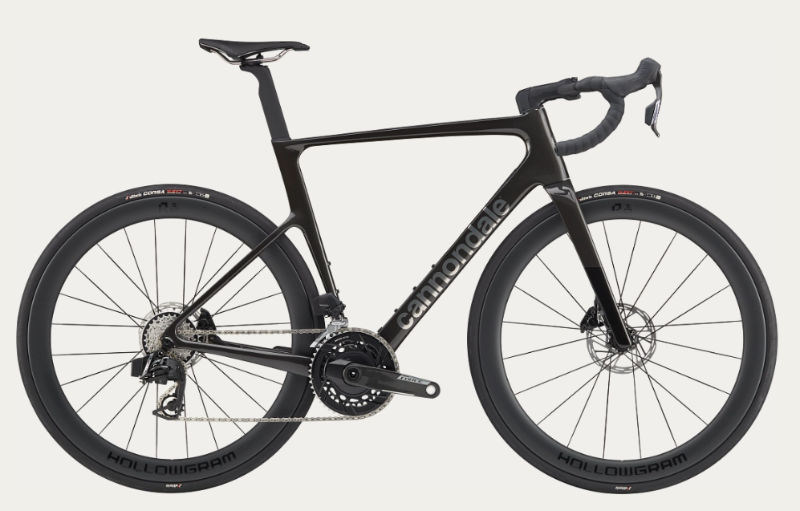

2025 Cannondale Supersix EVO geometry
Full frame geometry for the 2025 Cannondale Supersix EVO, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 505 | 370 | 74.3 | 70.9 | 100 | 469 | 400 | 698 | 74 | 582 | 410 | 981 | 55 | 60 |
| 48 | 520 | 374 | 74.3 | 71.2 | 114 | 479 | 438 | 727 | 74 | 589 | 410 | 987 | 55 | 58 |
| 51 | 535 | 378 | 74.3 | 71.2 | 130 | 489 | 477 | 756 | 74 | 598 | 410 | 996 | 55 | 58 |
| 54 | 555 | 384 | 73.7 | 71.2 | 154 | 509 | 515 | 788 | 72 | 611 | 410 | 1010 | 55 | 58 |
| 56 | 575 | 389 | 73.3 | 73 | 165 | 523 | 534 | 807 | 72 | 594 | 410 | 994 | 45 | 58 |
| 58 | 595 | 395 | 72.9 | 73 | 188 | 541 | 567 | 836 | 69 | 607 | 410 | 1007 | 45 | 58 |
| 61 | 625 | 403 | 72.3 | 73 | 220 | 564 | 600 | 866 | 69 | 624 | 410 | 1024 | 45 | 58 |
All measurements in millimetres unless marked (°) for angles.
