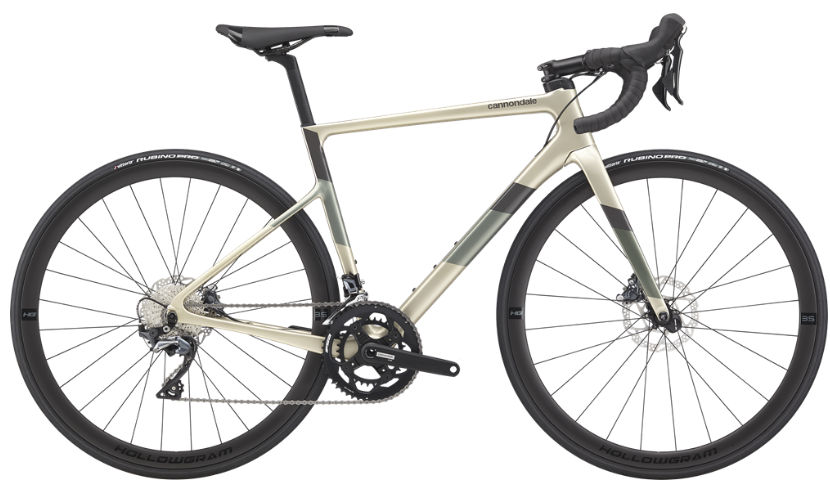

2019 Cannondale Supersix Evo MKIII Womens Disc geometry
Full frame geometry for the 2019 Cannondale Supersix Evo MKIII Womens Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 504 | 370 | 74.3 | 70.9 | 99 | 512 | 400 | 698 | 74 | 582 | 408 | 979 | 55 | 60 |
| 48 | 519 | 374 | 74.3 | 71.2 | 114 | 520 | 438 | 726 | 74 | 588 | 408 | 985 | 55 | 58 |
| 51 | 534 | 378 | 74.3 | 71.2 | 130 | 528 | 477 | 756 | 74 | 597 | 408 | 994 | 55 | 58 |
| 54 | 554 | 384 | 73.7 | 71.2 | 153 | 546 | 515 | 788 | 72 | 611 | 408 | 1000 | 55 | 58 |
All measurements in millimetres unless marked (°) for angles.
