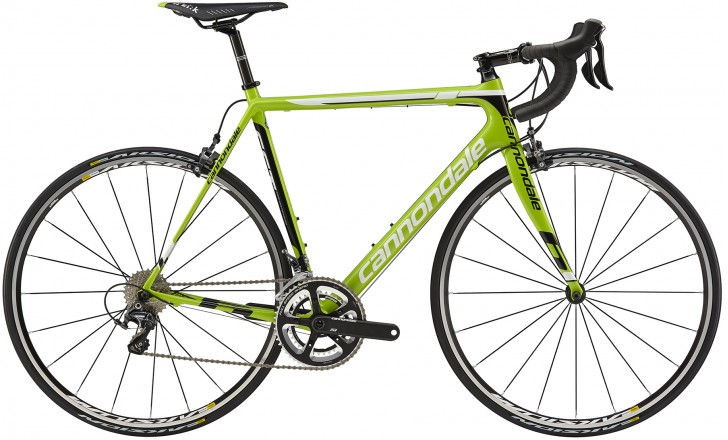

2013 Cannondale Supersix Evo MKI geometry
Full frame geometry for the 2013 Cannondale Supersix Evo MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 513 | 368 | 74.5 | 71.5 | 110 | 515 | 742 | 72 | 563 | 405 | 961 | 45 | 66 |
| 50 | 519 | 376 | 74.5 | 72 | 115 | 525 | 755 | 72 | 569 | 405 | 967 | 45 | 63 |
| 52 | 526 | 384 | 74 | 72.5 | 120 | 535 | 767 | 72 | 575 | 405 | 973 | 45 | 60 |
| 54 | 544 | 384 | 73.5 | 73 | 140 | 545 | 788 | 69 | 576 | 405 | 975 | 45 | 57 |
| 56 | 558 | 395 | 73.5 | 73 | 155 | 560 | 804 | 69 | 591 | 405 | 991 | 45 | 57 |
| 58 | 577 | 399 | 73 | 73.5 | 175 | 575 | 825 | 67 | 597 | 405 | 996 | 45 | 54 |
| 60 | 596 | 402 | 72.5 | 73.5 | 195 | 590 | 843 | 67 | 606 | 408 | 1008 | 45 | 54 |
| 63 | 620 | 399 | 72 | 73.5 | 220 | 600 | 869 | 67 | 609 | 408 | 1012 | 45 | 54 |
All measurements in millimetres unless marked (°) for angles.
