2026 Cannondale SuperSix EVO LAB71 geometry

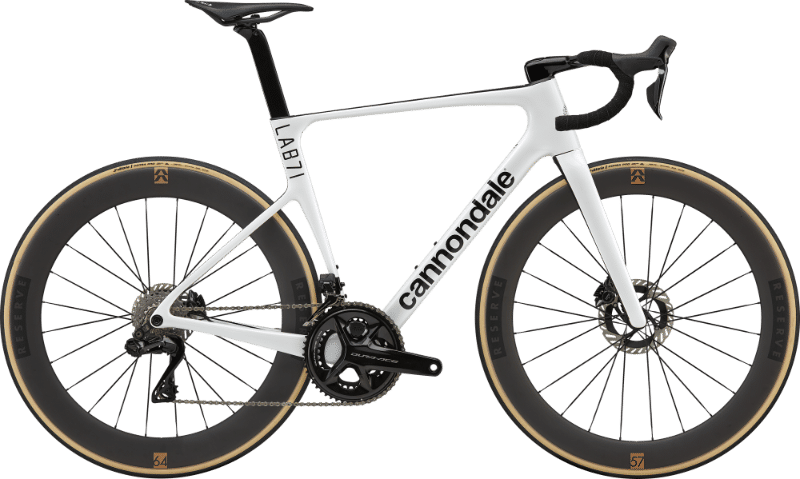

Name: 2026 Cannondale SuperSix EVO LAB71
Brand: Cannondale

Full frame geometry for the 2026 Cannondale SuperSix EVO LAB71, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)	Trail (mm)
44	495	373	74.5	70.9	89	510	694	74	582	410	980	55	60
48	508	376	74	71.2	101	522	717	74	588	410	985	55	58
50	520	379	74	71.2	114	529	733	74	594	410	993	55	58
52	532	383	74	71.2	130	536	752	72	602	410	1002	55	58
54	545	387	74	71.2	143	544	770	72	611	410	1010	55	58
56	565	393	73.5	73	154	560	790	72	595	410	995	45	58
58	585	398	73	73	178	577	812	69	607	410	1007	45	58
61	615	406	72.5	73	209	600	846	69	624	410	1024	45	58

All measurements in millimetres unless marked (°) for angles.
