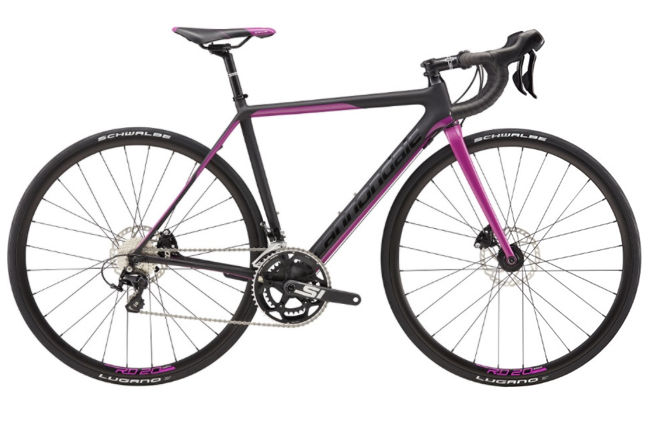

2017 Cannondale SUPERSIX EVO Disc Womens geometry
Full frame geometry for the 2017 Cannondale SUPERSIX EVO Disc Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 514 | 362 | 75 | 70.5 | 107 | 500 | 465 | 716 | 74 | 566 | 405 | 964 | 50 | 73 |
| 48 | 516 | 369 | 74.7 | 71.5 | 107 | 510 | 487 | 740 | 74 | 565 | 405 | 963 | 45 | 66 |
| 50 | 526 | 375 | 74.4 | 72 | 115 | 522 | 512 | 755 | 74 | 569 | 405 | 967 | 45 | 63 |
| 52 | 536 | 381 | 74.1 | 72.6 | 125 | 534 | 538 | 775 | 71 | 574 | 405 | 972 | 45 | 59 |
| 54 | 551 | 387 | 73.8 | 72.9 | 139 | 547 | 559 | 791 | 71 | 581 | 405 | 980 | 45 | 58 |
All measurements in millimetres unless marked (°) for angles.
