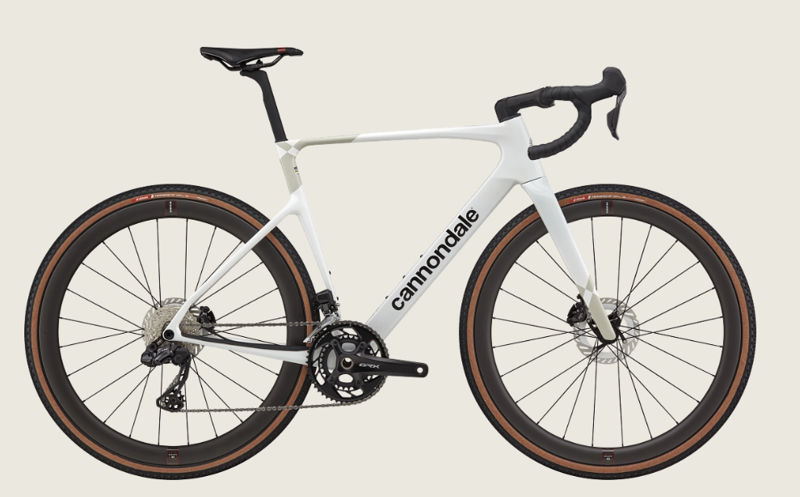

2025 Cannondale Super X geometry
Full frame geometry for the 2025 Cannondale Super X, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 515 | 365 | 74.3 | 70 | 86 | 510 | 449 | 746 | 77 | 588 | 422 | 998 | 5.5 | 72 |
| 51 | 535 | 371 | 74.3 | 71 | 108 | 521 | 488 | 782 | 72 | 593 | 422 | 1005 | 5.5 | 65 |
| 54 | 555 | 378 | 73.7 | 71 | 132 | 540 | 524 | 812 | 69 | 607 | 422 | 1020 | 5.5 | 65 |
| 56 | 575 | 385 | 73.3 | 71 | 153 | 558 | 546 | 832 | 69 | 621 | 422 | 1034 | 5.5 | 65 |
| 58 | 595 | 392 | 72.9 | 71 | 177 | 575 | 566 | 836 | 67 | 636 | 422 | 1049 | 5.5 | 65 |
| 61 | 615 | 398 | 72.3 | 71 | 198 | 594 | 589 | 849 | 67 | 648 | 422 | 1062 | 5.5 | 65 |
All measurements in millimetres unless marked (°) for angles.
