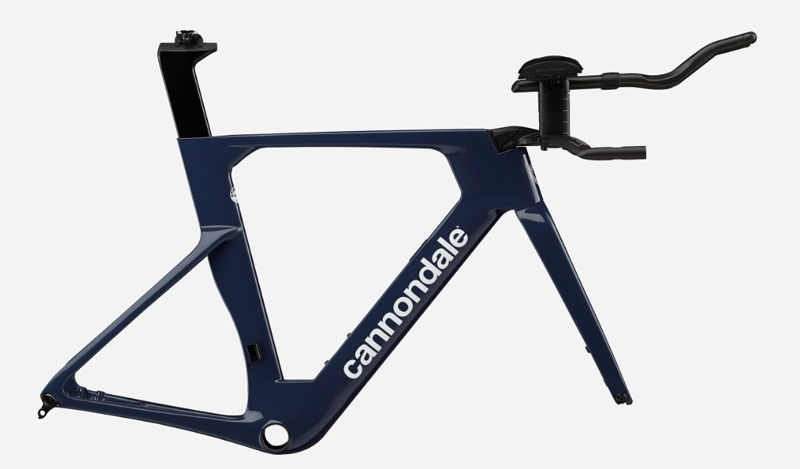

2023 Cannondale Super Slice Hi-Mod geometry
Full frame geometry for the 2023 Cannondale Super Slice Hi-Mod, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 461 | 388 | 71.5 | 71.5 | 50 | 508 | 400 | 434 | 73 | 575 | 405 | 969 | 50 | 61 |
| SM | 487 | 402 | 74 | 71.5 | 77 | 532 | 470 | 485 | 73 | 598 | 405 | 992 | 5 | 61 |
| MD | 514 | 417 | 75.5 | 71.5 | 106 | 556 | 556 | 547 | 73 | 622 | 405 | 1016 | 50 | 61 |
| LG | 540 | 431 | 77 | 71.5 | 133 | 600 | 600 | 585 | 73 | 644 | 405 | 1038 | 50 | 61 |
All measurements in millimetres unless marked (°) for angles.
