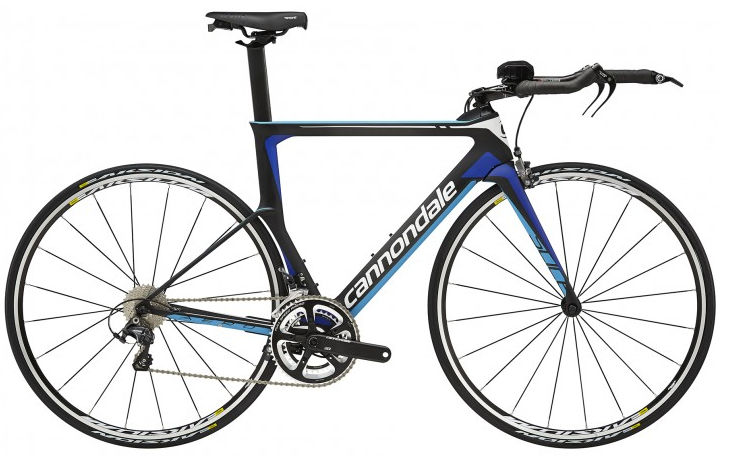

2015 Cannondale Slice MKII geometry
Full frame geometry for the 2015 Cannondale Slice MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 465 | 360 | 79 | 71.2 | 100 | 450 | 460 | 711 | 53 | 537 | 380 | 913 | 35 | 69 |
| 48 | 487 | 375 | 79 | 71.2 | 80 | 470 | 486 | 739 | 77 | 563 | 405 | 960 | 45 | 68 |
| 51 | 507 | 390 | 79 | 71.2 | 98 | 489 | 503 | 756 | 77 | 583 | 405 | 981 | 45 | 68 |
| 54 | 527 | 405 | 79 | 71.5 | 118 | 507 | 524 | 777 | 77 | 602 | 405 | 1000 | 45 | 66 |
| 57 | 547 | 420 | 79 | 72 | 137 | 526 | 544 | 797 | 77 | 619 | 405 | 1017 | 45 | 63 |
| 60 | 567 | 435 | 79 | 72.5 | 156 | 545 | 565 | 817 | 77 | 636 | 405 | 1034 | 45 | 60 |
All measurements in millimetres unless marked (°) for angles.
