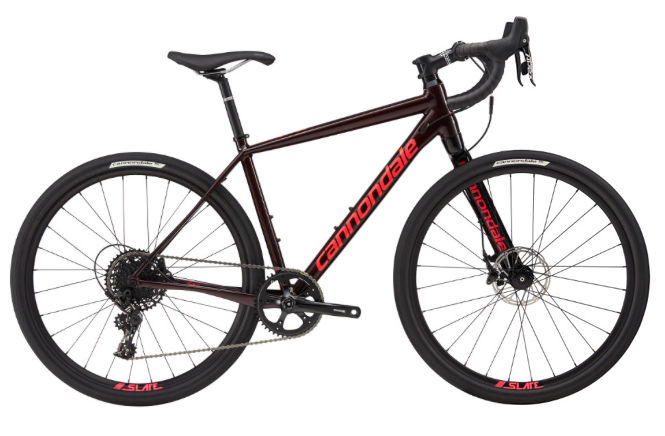

2017 Cannondale Slate Womens geometry
Full frame geometry for the 2017 Cannondale Slate Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 538 | 361 | 74.5 | 71 | 110 | 510 | 414 | 702 | 70 | 574 | 405 | 968 | 45 | 69 |
| M | 560 | 385 | 74 | 71.5 | 134 | 545 | 454 | 739 | 67 | 601 | 405 | 996 | 45 | 66 |
| L | 582 | 398 | 73.5 | 71.5 | 160 | 570 | 494 | 772 | 65 | 621 | 405 | 1018 | 45 | 66 |
| XL | 582 | 412 | 73 | 71.5 | 160 | 590 | 544 | 800 | 65 | 636 | 405 | 1032 | 45 | 66 |
All measurements in millimetres unless marked (°) for angles.
