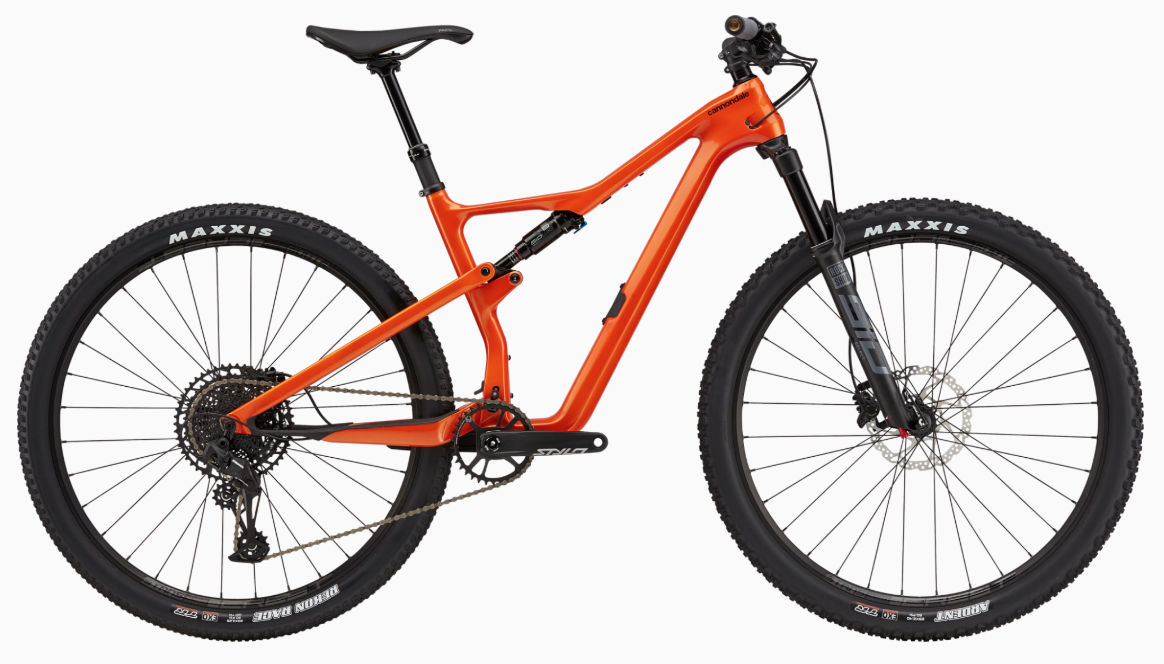

2020 Cannondale Scalpel Gen8 Carbon SE geometry
Full frame geometry for the 2020 Cannondale Scalpel Gen8 Carbon SE, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 582 | 415 | 74.5 | 68 | 95 | 576 | 430 | 743 | 40 | 695 | 436 | 1128 | 44 | 90 |
| M | 591 | 435 | 74.5 | 68 | 105 | 599 | 440 | 745 | 40 | 718 | 436 | 1151 | 44 | 90 |
| L | 601 | 455 | 74.5 | 68 | 115 | 622 | 480 | 745 | 40 | 742 | 436 | 1175 | 44 | 90 |
| XL | 610 | 475 | 74.5 | 68 | 125 | 644 | 520 | 748 | 40 | 766 | 436 | 1199 | 44 | 90 |
All measurements in millimetres unless marked (°) for angles.
