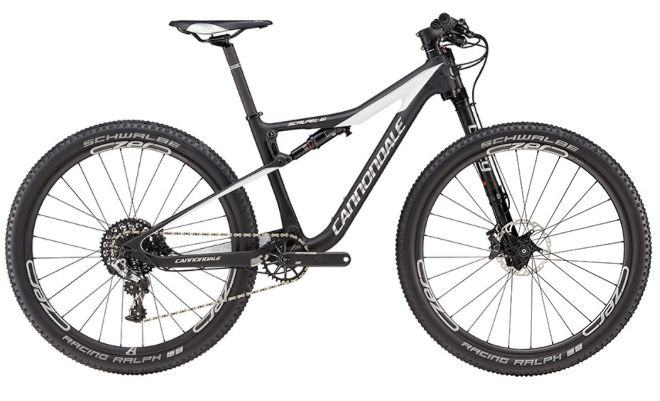

2017 Cannondale Scalpel Gen7 Carbon Womens geometry
Full frame geometry for the 2017 Cannondale Scalpel Gen7 Carbon Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 550 | 407 | 73.5 | 69.5 | 97 | 570 | 400 | 716 | 20 | 653 | 425 | 1079 | 50 | 75 |
| XS | 550 | 385 | 73.5 | 69.5 | 97 | 548 | 380 | 715 | 20 | 631 | 425 | 1057 | 50 | 75 |
| M | 562 | 437 | 73.5 | 69.5 | 110 | 603 | 420 | 719 | 20 | 687 | 425 | 1113 | 50 | 75 |
All measurements in millimetres unless marked (°) for angles.
