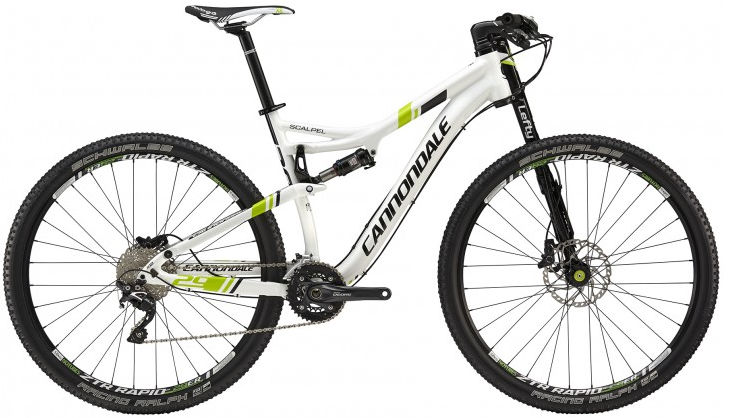

2015 Cannondale Scalpel Gen6 geometry
Full frame geometry for the 2015 Cannondale Scalpel Gen6, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 609 | 394 | 73.5 | 70.5 | 532 | 411 | 736 | 38 | 645 | 444 | 1086 | 45 | 83 |
| M | 611 | 415 | 73.5 | 71 | 553 | 430 | 734 | 38 | 661 | 444 | 1102 | 45 | 80 |
| L | 612 | 436 | 73.5 | 71.2 | 578 | 485 | 753 | 38 | 680 | 444 | 1122 | 45 | 78 |
| XL | 613 | 458 | 73.5 | 71.4 | 608 | 535 | 766 | 38 | 700 | 444 | 1141 | 45 | 77 |
All measurements in millimetres unless marked (°) for angles.
