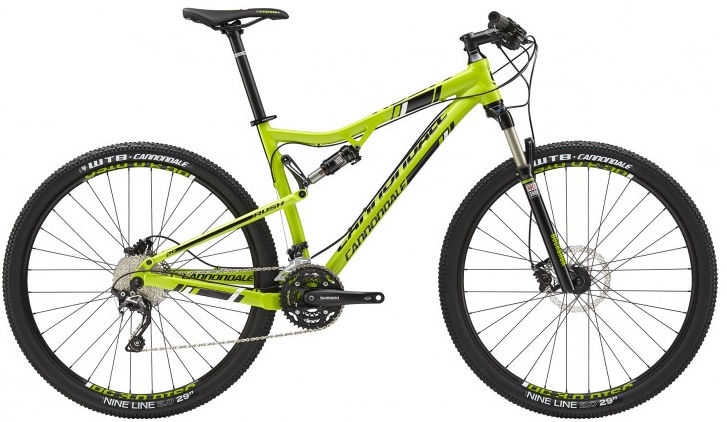

2015 Cannondale Rush 29 geometry
Full frame geometry for the 2015 Cannondale Rush 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 602 | 415 | 73.5 | 70 | 593 | 445 | 742 | 38 | 675 | 454 | 1127 | 51 | 80 |
| S | 602 | 390 | 73.5 | 70 | 568 | 420 | 733 | 38 | 651 | 454 | 1102 | 51 | 80 |
| L | 613 | 435 | 73.5 | 70 | 617 | 485 | 775 | 38 | 700 | 454 | 1151 | 51 | 80 |
| XL | 625 | 456 | 73.5 | 70 | 641 | 525 | 782 | 38 | 725 | 454 | 1176 | 51 | 80 |
All measurements in millimetres unless marked (°) for angles.
