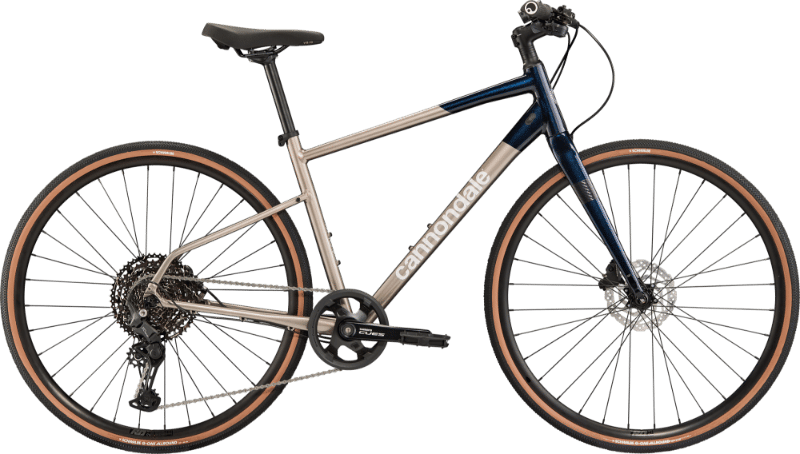

2026 Cannondale Quick geometry
Full frame geometry for the 2026 Cannondale Quick, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 530 | 390 | 70.3 | 70 | 112 | 552 | 350 | 663 | 68 | 620 | 435 | 1046 | 55 | 70 |
| S | 554 | 398 | 70.3 | 71 | 133 | 567 | 400 | 706 | 68 | 627 | 435 | 1053 | 55 | 64 |
| M | 578 | 406 | 70.3 | 71 | 158 | 583 | 450 | 743 | 68 | 643 | 435 | 1069 | 55 | 64 |
| L | 602 | 414 | 70.3 | 71 | 184 | 598 | 500 | 782 | 68 | 660 | 435 | 1086 | 55 | 64 |
| XL | 626 | 422 | 70.3 | 71 | 209 | 613 | 550 | 821 | 68 | 676 | 435 | 1102 | 55 | 64 |
| XXL | 650 | 430 | 70.3 | 71 | 234 | 628 | 600 | 855 | 68 | 692 | 435 | 1118 | 55 | 64 |
All measurements in millimetres unless marked (°) for angles.
