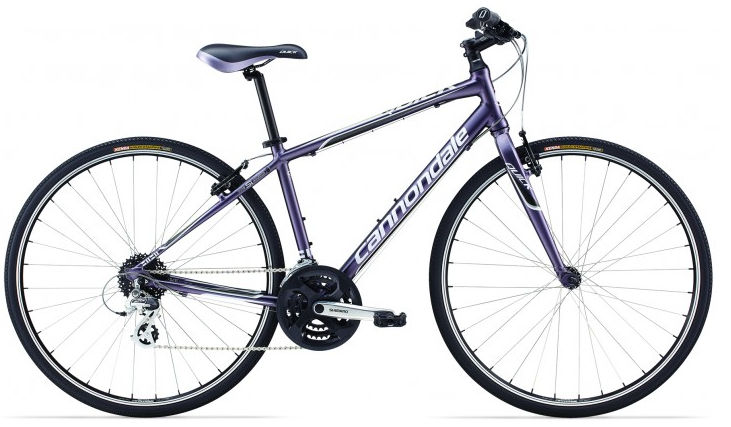

2015 Cannondale Quick W geometry
Full frame geometry for the 2015 Cannondale Quick W, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 546 | 384 | 75 | 70 | 125 | 530 | 360 | 683 | 70 | 609 | 435 | 1034 | 45 | 77 |
| M | 572 | 392 | 75 | 70.5 | 150 | 545 | 420 | 730 | 70 | 621 | 435 | 1047 | 45 | 77 |
| TL | 602 | 398 | 74.5 | 71 | 180 | 565 | 470 | 770 | 70 | 633 | 435 | 1058 | 45 | 77 |
All measurements in millimetres unless marked (°) for angles.
