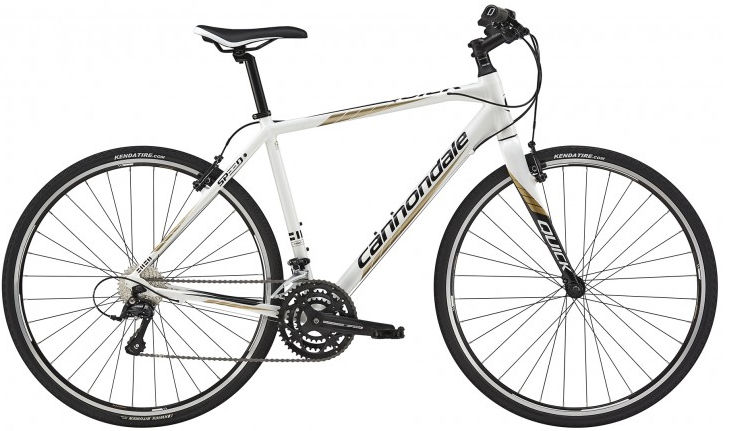

2015 Cannondale Quick Speed geometry
Full frame geometry for the 2015 Cannondale Quick Speed, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 503 | 391 | 75 | 70.5 | 130 | 545 | 440 | 729 | 70 | 626 | 435 | 1061 | 50 | 69 |
| M | 512 | 403 | 75 | 70.5 | 140 | 560 | 480 | 758 | 70 | 642 | 435 | 1077 | 50 | 69 |
| L | 533 | 407 | 74.5 | 71 | 160 | 575 | 520 | 792 | 70 | 648 | 435 | 1083 | 50 | 66 |
| XL | 546 | 411 | 73 | 71.5 | 190 | 605 | 560 | 829 | 70 | 656 | 435 | 1091 | 50 | 62 |
All measurements in millimetres unless marked (°) for angles.
