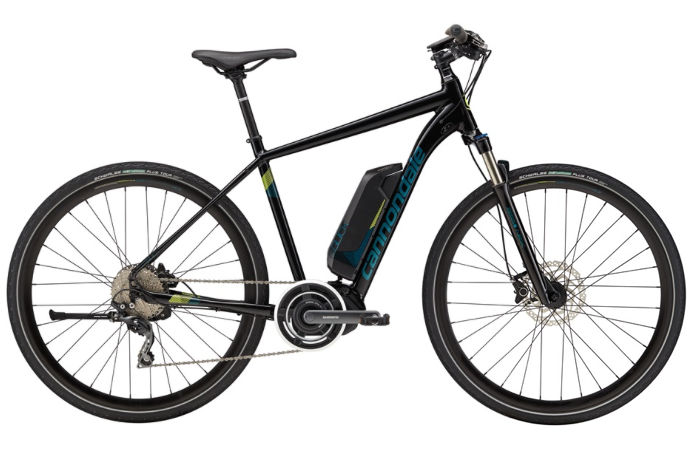

2017 Cannondale Quick Neo geometry
Full frame geometry for the 2017 Cannondale Quick Neo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 605 | 365 | 73 | 69 | 123 | 550 | 450 | 766 | 65 | 625 | 470 | 1086 | 45 | 92 |
| M | 622 | 380 | 73 | 69 | 141 | 570 | 500 | 803 | 65 | 644 | 470 | 1107 | 45 | 92 |
| L | 638 | 395 | 73 | 69 | 158 | 590 | 550 | 838 | 65 | 666 | 470 | 1129 | 45 | 92 |
| XL | 655 | 410 | 73 | 69 | 176 | 610 | 600 | 874 | 65 | 686 | 470 | 1150 | 45 | 92 |
All measurements in millimetres unless marked (°) for angles.
