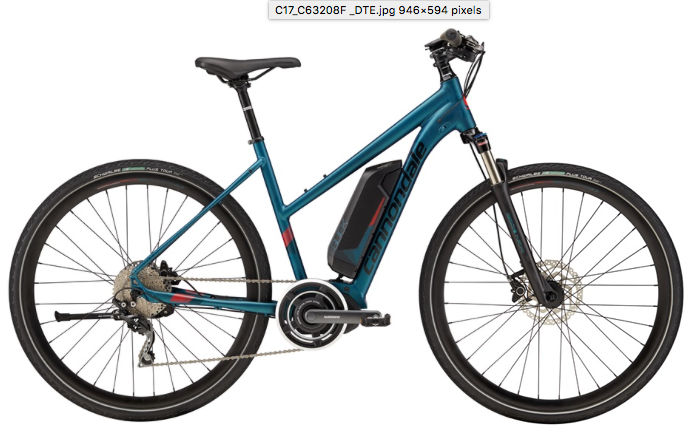

2017 Cannondale Quick Neo Womens geometry
Full frame geometry for the 2017 Cannondale Quick Neo Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 595 | 348 | 73 | 69 | 112 | 530 | 380 | 710 | 65 | 604 | 470 | 1065 | 45 | 92 |
| S | 605 | 361 | 73 | 69 | 123 | 546 | 435 | 704 | 65 | 621 | 470 | 1082 | 45 | 92 |
| M | 622 | 375 | 73 | 69 | 141 | 562 | 490 | 692 | 65 | 638 | 470 | 1099 | 45 | 92 |
| L | 638 | 385 | 73 | 69 | 158 | 580 | 550 | 678 | 65 | 657 | 470 | 1119 | 45 | 92 |
All measurements in millimetres unless marked (°) for angles.
