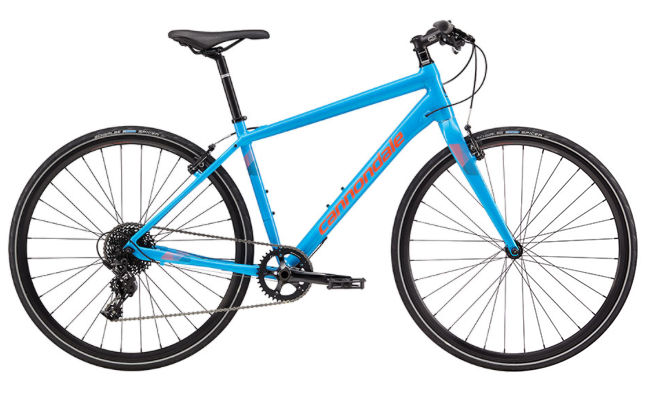

2015 Cannondale Quick MK I geometry
Full frame geometry for the 2015 Cannondale Quick MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 562 | 384 | 75 | 70.5 | 140 | 535 | 415 | 721 | 70 | 610 | 435 | 1036 | 45 | 74 |
| M | 572 | 397 | 75 | 70.5 | 150 | 550 | 440 | 742 | 70 | 626 | 435 | 1052 | 45 | 74 |
| L | 592 | 401 | 74.5 | 71 | 170 | 565 | 490 | 780 | 70 | 632 | 435 | 1058 | 45 | 71 |
| XL | 623 | 405 | 73 | 71.5 | 200 | 595 | 540 | 821 | 70 | 641 | 435 | 1066 | 45 | 68 |
| 2XL | 653 | 414 | 72.5 | 72 | 230 | 620 | 600 | 867 | 70 | 655 | 435 | 1080 | 45 | 64 |
All measurements in millimetres unless marked (°) for angles.
